Dual Primary & Secondary PC Mount Transformers
Dual Primary & Secondary PC Mount Transformers
SKU:POW-948648
Enhance power supplies with Dual Primary & Secondary PC Mount Transformers for reliable performance and dual market use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Primary & Secondary PC Mount Transformers
$29.99
Quantity: 1
Claim Your Seller Account
Dual Primary & Secondary PC Mount Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

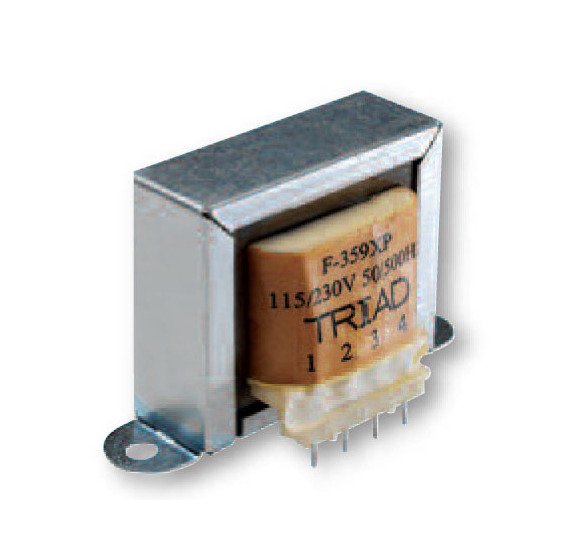

Upgrade your power supply designs with our versatile Dual Primary, Dual Center Tap Secondary PC Mount Power Transformers. Ideal for power, control, and instrumentation applications, these transformers feature dual primaries for use in both domestic and foreign markets. Hi-pot tested at 1,500 VRMS for reliability and safety.
Product Specifications

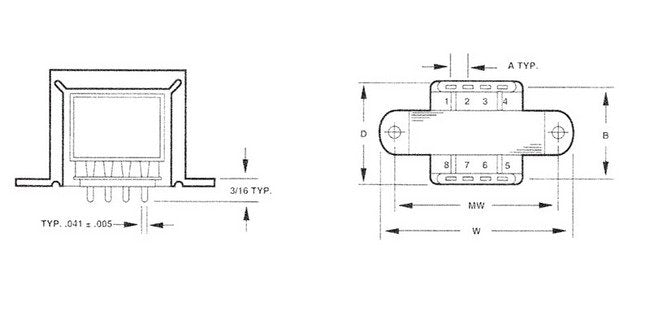

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
12.0 V at 0.360 A
Specifications Secondary Voltage In Series
24.0 V CT at 0.180 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
