Dual Primary/Secondary PC Mount Transformers
Dual Primary/Secondary PC Mount Transformers
SKU:POW-c097a0
Versatile Dual Primary/Secondary Power Transformers for consumer electronics & industrial devices.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Primary/Secondary PC Mount Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Dual Primary/Secondary PC Mount Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

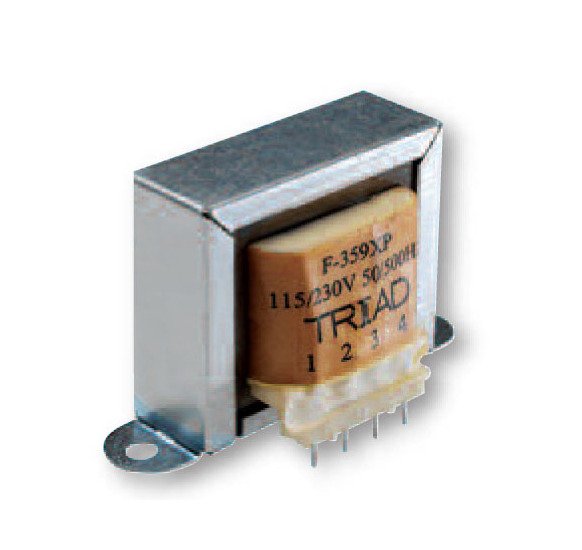

The Dual Primary, Dual Secondary PC Mount Power Transformers are essential components designed to meet the power, control, and instrumentation needs of both consumer electronic devices and industrial equipment. With a range of electrical ratings, primary voltage options, and dual center tapped secondary configurations, these transformers offer versatility and reliability for various applications. The transformers are hi-pot tested at 1,500 VRMS and are suitable for equipment targeting both domestic and international markets.
Product Specifications

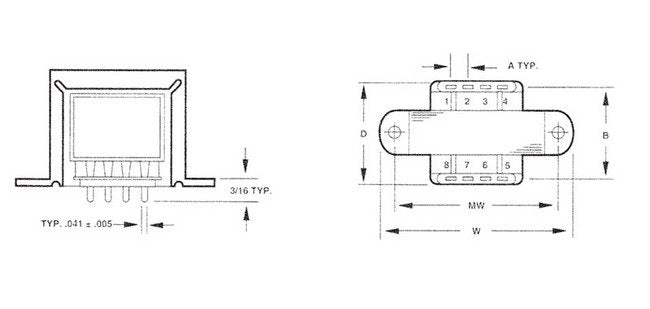

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
7.5 V at 0.6 A
Specifications Secondary Voltage In Series
15.0 V CT at 0.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
