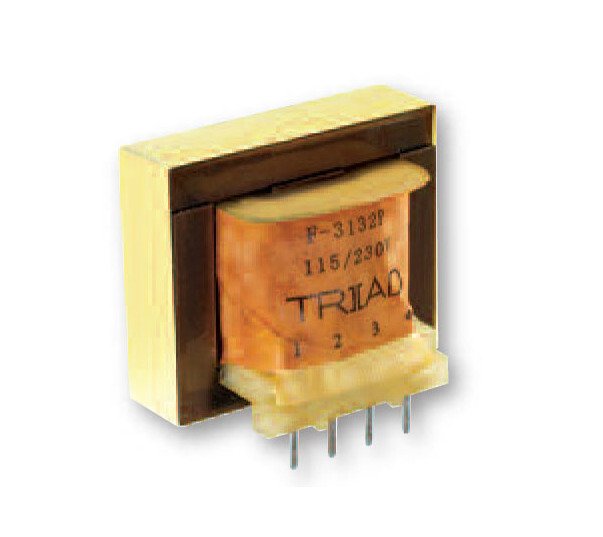

The Dual Primary & Secondary PC Mount Transformers from Triad are versatile solutions ideal for both consumer and institutional power supply designs. Featuring dual primary voltages of 115V and 230V, and dual center tapped secondary configurations, these transformers ensure compatibility in various applications. With an electrical rating of 1.5 VA, center tap transformer contact type, and hi-pot testing at 1500 VRMS, these transformers meet stringent quality standards for reliable performance. Perfect for meeting power, control, and instrumentation requirements in domestic and foreign markets.
Product Specifications

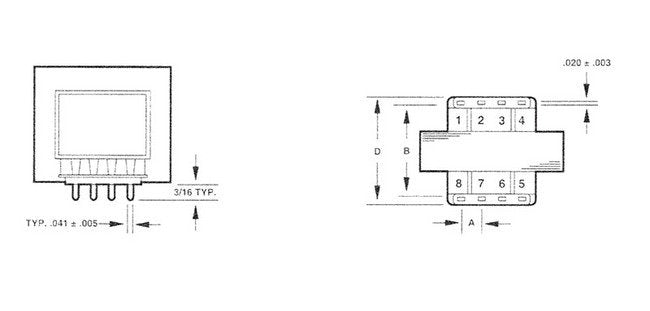

Specifications Depth D
1 1/8 in
Specifications Dimension A
1 3/64 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
7.5 V at 0.2 A
Specifications Secondary Voltage In Series
15.0 V CT at 0.1 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.0 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
