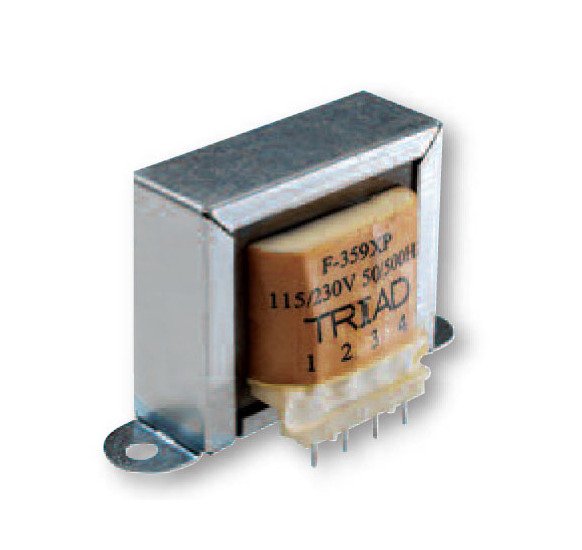

Ideal for PC board and solid state power supply designs, our dual primary and dual center tapped secondary transformers offer versatility and reliability. With an electrical rating of 7 1/2 V·A, and primary voltage options of 115V or 230V along with dual secondary configurations, these transformers meet a wide range of power and control instrumentation needs. Tested at 1,500 VRMS for reliability, these transformers are suitable for both domestic and foreign market equipment, ensuring quality performance across various applications.
Product Specifications

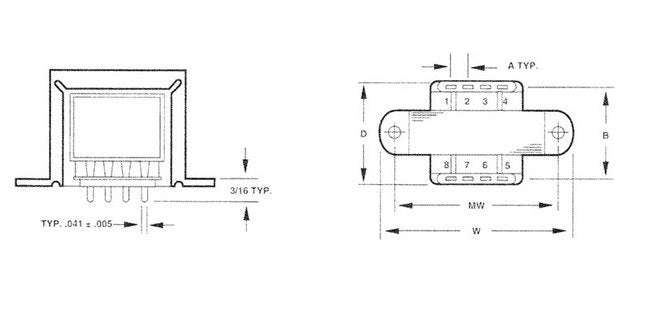

Specifications Depth D
1 7/16 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 7/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.5 A
Specifications Secondary Voltage In Series
30.0 V CT at 0.25 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
11.0 oz
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
