Enhance power supply designs with versatile Dual Primary/Secondary PC Mount Transformers. Dual primary for global use, hi-pot tested.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Dual Primary/Secondary PC Mount Transformers
$45.99
Quantity: 1
Claim Your Seller Account
Dual Primary/Secondary PC Mount Transformers
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply designs with our Dual Primary, Dual Secondary PC Mount Power Transformers. Designed for versatility, these transformers offer both power and control solutions. Featuring a dual primary allowing use in both international and domestic markets, these transformers are hi-pot tested for superior performance and safety at 1,500 VRMS. With center tap secondary configurations, they meet the needs of diverse applications in various industries.
Product Specifications

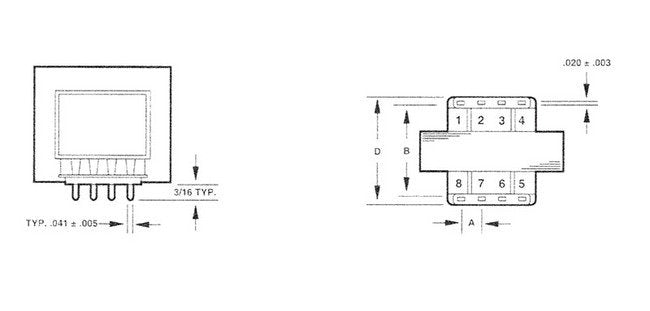

Specifications Depth D
1 1/8 in
Specifications Dimension A
1 3/64 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
115.0 V at 0.013 A
Specifications Secondary Voltage In Series
230.0 V CT at 0.0065 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.0 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
