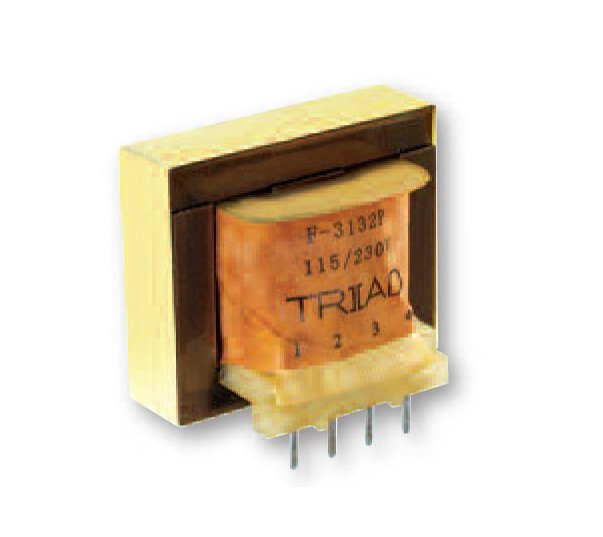

Dual Primary & Secondary PC Mount Transformers
Dual Primary & Secondary PC Mount Transformers
SKU:POW-cb9f88
Versatile Dual Primary & Secondary Power Transformers for PC boards and power supplies. Hi-pot tested at 1,500 VRMS.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Dual Primary & Secondary PC Mount Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Dual Primary & Secondary PC Mount Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Primary, Dual Secondary PC Mount Power Transformers from our collection are meticulously designed to cater to the intricate needs of PC board and solid-state power supply systems. These transformers offer dual primary voltage options of 115V and 230V, ensuring compatibility with both domestic and international markets. With a secondary voltage of 24.0V CT at 1.0A in series and 12.0V at 2.0A in parallel, these transformers provide exceptional flexibility for various power, control, and instrumentation applications. Moreover, they are Hi-pot tested at 1,500 VRMS for enhanced safety and reliability.
Product Specifications

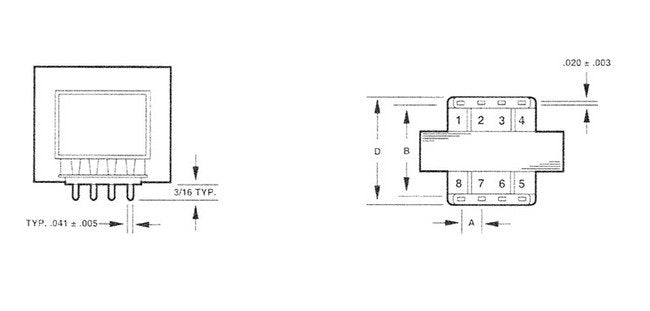

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
12.0 V at 2.0 A
Specifications Secondary Voltage In Series
24.0 V CT at 1.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
