Dual Row Nano Connector with Insulated Wire - Receptacle to Receptacle
Dual Row Nano Connector with Insulated Wire - Receptacle to Receptacle
SKU:DSU-404c90
High-performance Dual Row Nano Connector for aerospace, defense, and medical applications. Complies with MIL-DTL-32139 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Dual Row Nano Connector with Insulated Wire - Receptacle to Receptacle
$24.99
Quantity: 1
Claim Your Seller Account
Dual Row Nano Connector with Insulated Wire - Receptacle to Receptacle
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

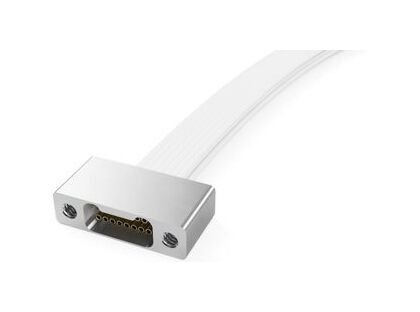

The Dual Row Nano Connector with Insulated Wire is a high-performance, compact solution designed for demanding environments like aerospace, defense, and medical industries. Manufactured by JCC with precision contact machining, this connector offers reliable connectivity under extreme conditions such as vibration and thermal shock. With a 0.635mm pitch and a range of pin options (9, 15, 21, 31, 37, 51), it provides space-saving and lightweight benefits. This product complies with MIL-DTL-32139 standards, ensuring quality and reliability for critical applications.
Product Specifications
Additional Information
We also manufacture products that comply with MIL-DTL-32139 standards.Also supports customer-specific customized products.Please contact us for right angle.
Application
Aircraft | Aviation Equipment | Electronics Equipment | Etc. | Measurement Equipment | Medical Equipment | Missile | Mobile Precision Device | Satellite | Small Drive Equipment
Materials Encapsulant
Epoxy Resin
Materials Insulator
Thermoplastic
Materials Plug Pin
Copper Alloy, Au plating over Ni
Materials Shell
Aluminum Alloy
Materials Socket Pin
Copper Alloy, Au plating over Ni
Specifications Contact Type
Receptacle to Receptacle
Specifications Current Rating
1 A
Specifications Dielectric Withstanding Alternating Current Ac Vo
100 V
Specifications High Temperature Range
-55 to +200 ºC
Specifications Maximum Contact Resistance
71 mΩ
Specifications Minimum Insulation Resistance At 100 Volt V Direc
5,000 mΩ
Specifications Minimum Mating Durability
200 cycles
Specifications Number Of Pins
9 | 15 | 21 | 31 | 37 | 51
Specifications Pitch
0.635 mm | 0.025 in
Specifications Standard Temperature Range
-55 to +150 ºC
