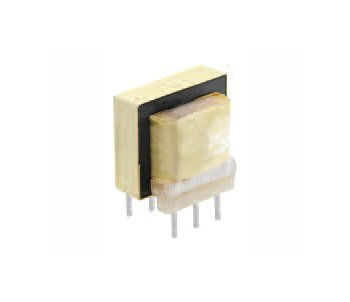

Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-5b94e7
Enhance power supply designs with our Dual Secondary PC Mount Power Transformer. Reliable, efficient, and versatile for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Secondary PC Mount Power Transformer from our PC Mount Power Transformers line is meticulously engineered to meet the power, control, and instrumentation needs of PC board and solid state power supply designs. With dual center tapped secondary configurations, primary voltages of 115V, and hi-pot testing at 1,500 VRMS, this transformer ensures reliable performance and efficiency in diverse applications. Whether for consumer electronics or institutional systems, this transformer delivers exceptional power distribution and stability.
Product Specifications

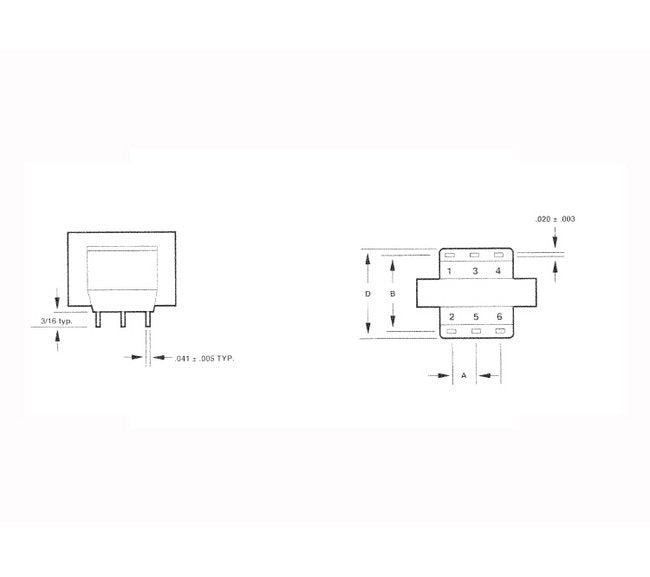

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
20.0 V at 0.076 A
Specifications Secondary Voltage In Series
40.0 V CT at 0.038 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
