Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-25e061
Meet diverse power supply requirements with our Dual Secondary PC Mount Power Transformer. Ideal for power, control, and instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

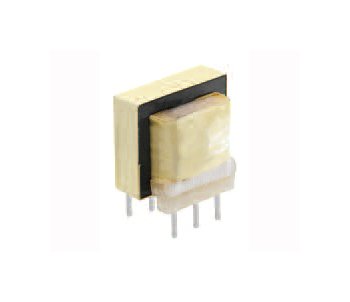

The Dual Secondary PC Mount Power Transformer from our PC Mount Power Transformers line is designed to meet the varying needs of PC board and solid-state power supply designs with precision. Featuring single primary and dual secondary configurations, this transformer is perfect for power, control, and instrumentation applications. With an electrical rating of 1 1/2 V·A, primary voltage of 115V, and center tap secondary voltage of 34.0V CT at 0.045A, this transformer delivers efficiency and reliability for your power needs. It is also hi-pot tested at 1,500 VRMS for safety and quality assurance.
Product Specifications

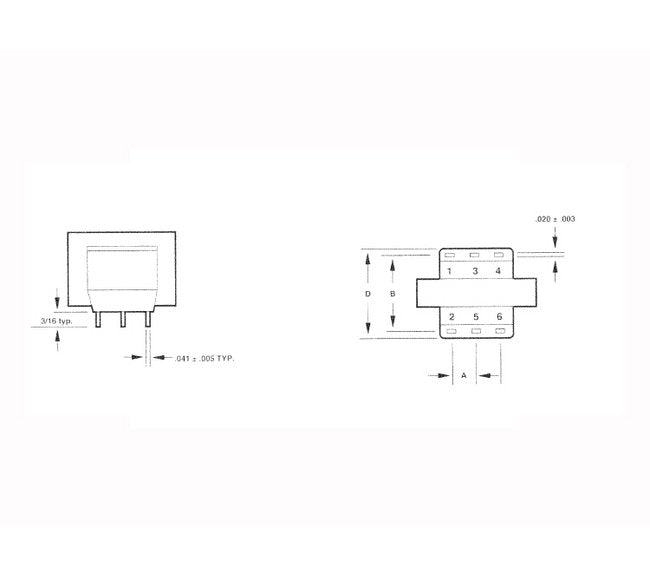

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
17.0 V at 0.090 A
Specifications Secondary Voltage In Series
34.0 V CT at 0.045 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
