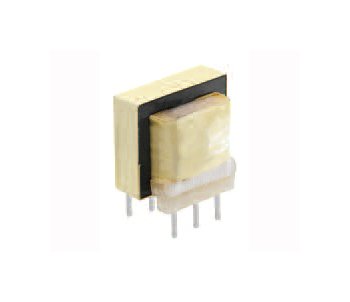

Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-4f1fd6
Versatile Dual Secondary PC Mount Transformer for precise power supply solutions.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$34.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Secondary PC Mount Power Transformer from our PC Mount Power Transformers line is engineered to meet the stringent requirements of both consumer and institutional power supply design applications. With dual center-tapped secondary configurations, this transformer offers ultimate versatility for power, control, and instrumentation needs. Featuring a primary voltage of 115V, center tap contact type, and a high-frequency capability of 50-60 Hz, this transformer is ideal for a wide range of projects. It is meticulously hi-pot tested at 1,500 VRMS to ensure safety and reliability.
Product Specifications

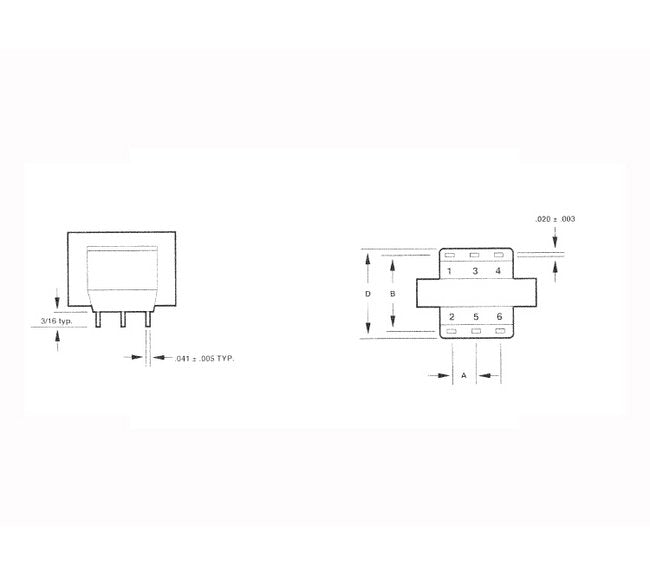

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
7.5 V at 0.200 A
Specifications Secondary Voltage In Series
15.0 V CT at 0.100 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
