Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-c0f1b6
Versatile Dual Secondary PC Mount Power Transformer for efficient and reliable power supply designs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

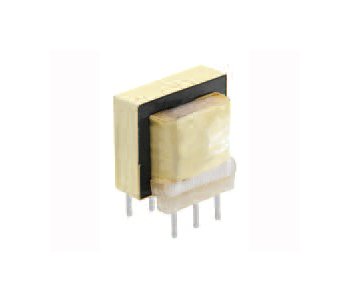

The Dual Secondary PC Mount Power Transformer from our PC Mount Power Transformers line is designed to meet diverse needs in PC board and solid-state power supply designs. With single or dual primary configurations and dual center tapped secondary options, this transformer is versatile for power, control, and instrumentation applications. Featuring an electrical rating of 1 1/2 VA, primary voltage of 115V, and secondary voltages of 8.0V CT at 0.188 A and 4.0V at 0.376 A, this transformer is optimized for efficiency and performance. Tested at 1,500 VRMS for reliability, it offers a height of 1 3/16 in, depth of 1 5/32 in, and a weight of 3.5 oz.
Product Specifications

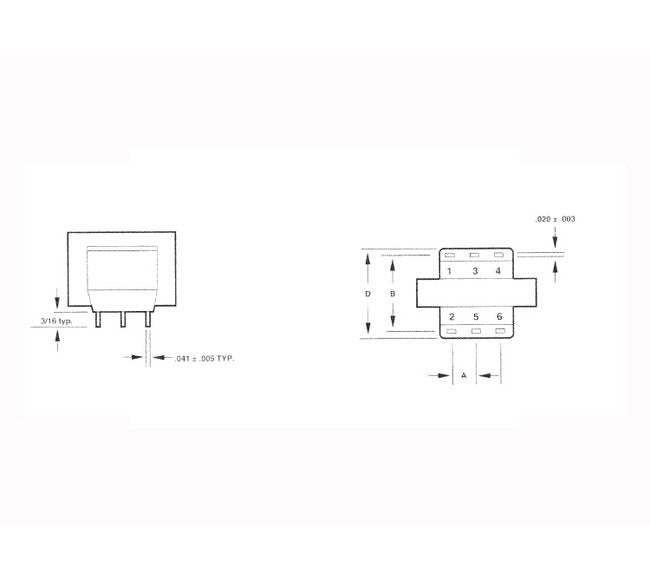

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
4.0 V at 0.376 A
Specifications Secondary Voltage In Series
8.0 V CT at 0.188 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
