Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-533386
Versatile Dual Secondary PC Mount Power Transformer for reliable power supply designs. Hi-pot tested for performance assurance.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$25.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

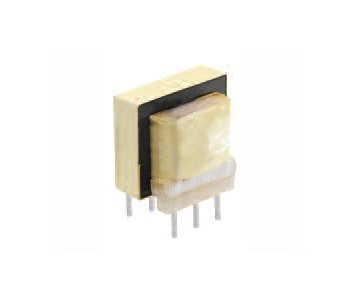

The Dual Secondary PC Mount Power Transformer from our PC Mount Power Transformers line is expertly designed to meet the varying needs of PC board and solid-state power supply designs. With both single and dual primary configurations and dual center-tapped secondary configurations, this transformer is versatile for power, control, and instrumentation applications. Delivering an Electrical Rating of 1 1/2 V·A and Hi-pot tested at 1,500 VRMS, this transformer ensures high performance and reliability in diverse settings.
Product Specifications

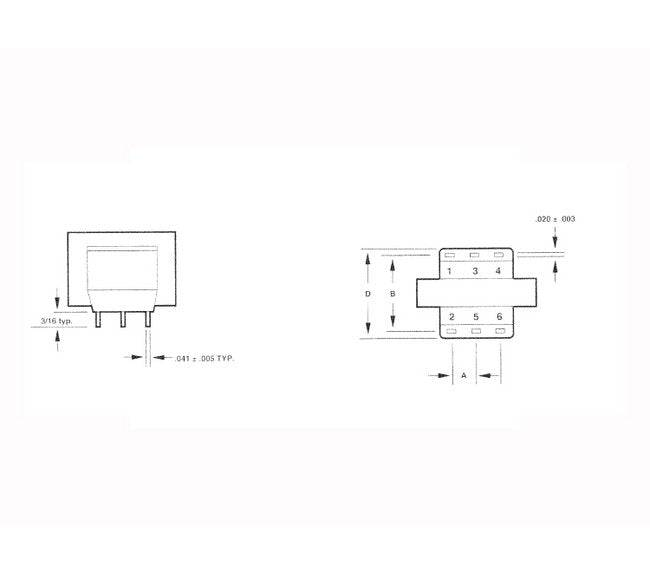

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
38.0 V at 0.040 A
Specifications Secondary Voltage In Series
76.0 V CT at 0.020 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
