Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-4ece43
Versatile Dual Secondary PC Mount Power Transformer for PC board and solid-state power supply designs. Reliable performance with 1 1/2 VA electrical rating, safe hi-pot testing at 1,500 VRMS.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

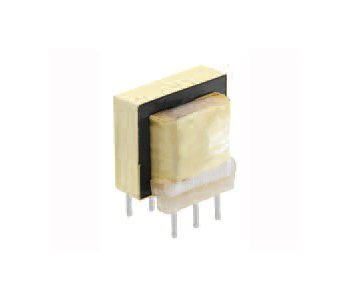

The Dual Secondary PC Mount Power Transformer, a part of our PC Mount Power Transformers line, is specially designed for PC board and solid-state power supply applications. Featuring both single and dual primary options, along with dual center-tapped secondary configurations, this transformer is versatile and ideal for power, control, and instrumentation requirements. With an electrical rating of 1 1/2 VA and secondary voltages of 54.0 V CT at 0.028 A and 27.0 V at 0.056 A, this transformer ensures reliable performance. Tested at 1,500 VRMS for safety compliance, this transformer is a dependable choice for various applications.
Product Specifications

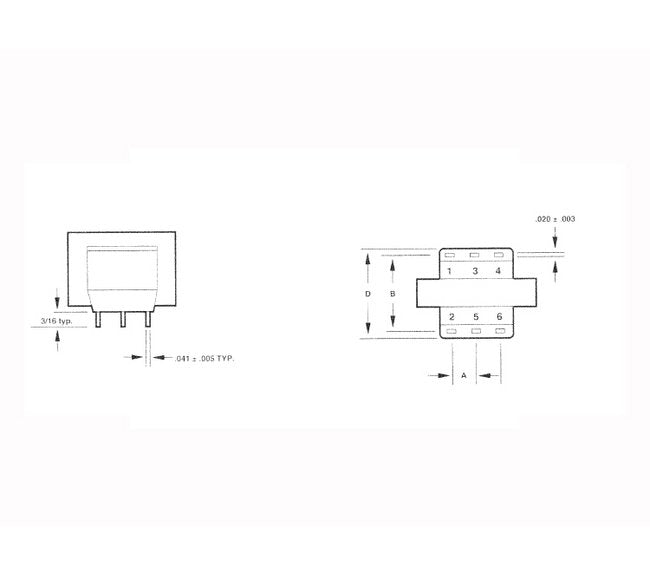

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
27.0 V at 0.056 A
Specifications Secondary Voltage In Series
54.0 V CT at 0.028 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
