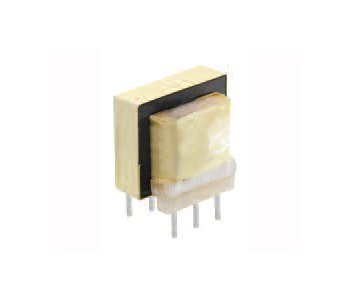

Meet the demanding power and control needs of your PC board designs with our Dual Secondary PC Mount Power Transformer. Designed to deliver reliable performance, this transformer offers dual center-tapped secondary configurations for versatile applications. With an electrical rating of 1 1/2 V·A and primary voltage of 115V, it ensures efficient power distribution. Tested at 1,500 VRMS for quality assurance, this transformer is a reliable choice for your power supply needs.
Product Specifications

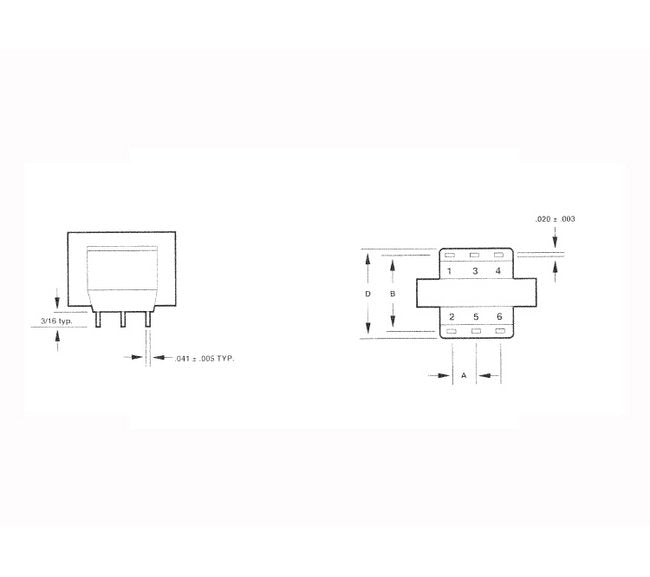

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
8.5 V at 0.170 A
Specifications Secondary Voltage In Series
17.0 V CT at 0.085 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
