Dual Secondary PC Mount Power Transformer
Dual Secondary PC Mount Power Transformer
SKU:POW-c5d259
Enhance your power supply designs with Triad's Dual Secondary PC Mount Power Transformer. Versatile and reliable, with various voltage options and hi-pot tested for quality assurance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Dual Secondary PC Mount Power Transformer
$59.99
Quantity: 1
Claim Your Seller Account
Dual Secondary PC Mount Power Transformer
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

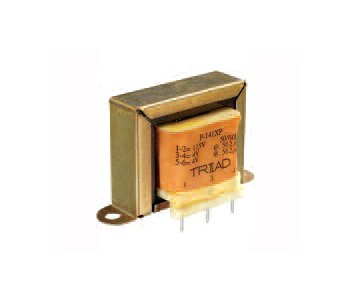

The Dual Secondary PC Mount Power Transformer from Triad is a versatile solution designed to meet the power, control, and instrumentation requirements of PC board and solid-state power supply designs. With both single and dual primary options and dual center-tapped secondary configurations, this transformer offers flexibility for various applications. Featuring an electrical rating of 7 1/2 V·A, secondary voltage options of 76.0 V CT at 0.100 A and 38.0 V at 0.200 A, and hi-pot testing at 1,500 VRMS, this transformer ensures reliable performance while meeting industry standards.
Product Specifications

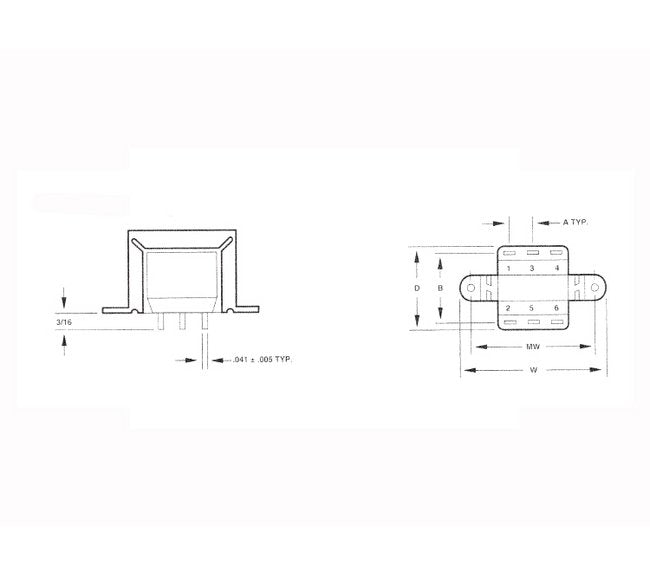

Specifications Depth D
1 15/32 in
Specifications Dimension A
13/32 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 61/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
38.0 V at 0.200 A
Specifications Secondary Voltage In Series
76.0 V CT at 0.100 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.

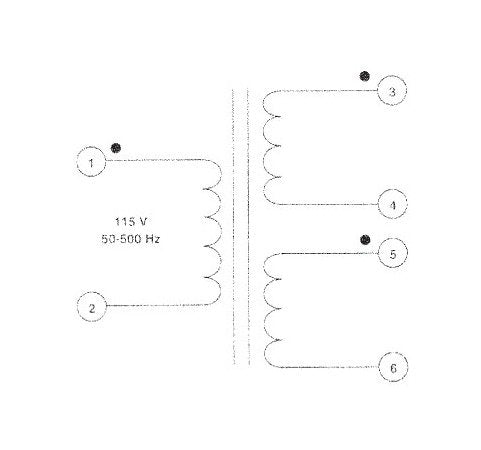

Specifications Transformer Contact Type
Center Tap
Specifications Weight
10.5 oz
Specifications Width W
2 13/16 in
