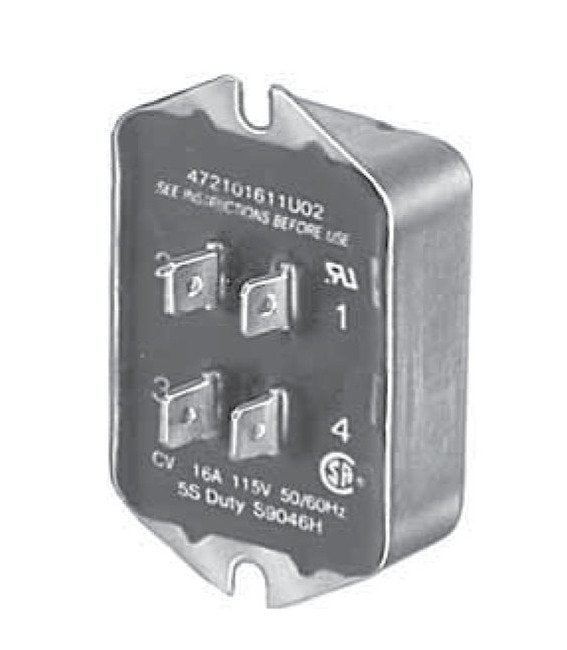

Dual Voltage Capacitor Start Motor Switch - CV Series
Dual Voltage Capacitor Start Motor Switch - CV Series
SKU:MOT-2c49cc
Efficiently control dual voltage motors with precision. UL and CSA certified for reliability. Suitable for motors up to 1/2 hp.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Dual Voltage Capacitor Start Motor Switch - CV Series
$34.99
Quantity: 1
Claim Your Seller Account
Dual Voltage Capacitor Start Motor Switch - CV Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CV Series Switches for Dual Voltage Capacitor Start Motors offer precise control and efficient operation. Designed for motors up to 1/2 hp, with current ratings tailored for both 115V and 115/230V systems. These switches ensure smooth motor start-up and shutdown, utilizing start winding RPM-sensitive voltage comparison for optimal performance. With UL and CSA certifications, operating temperatures from -40ºC to 65ºC, and a switch rating of 16A, these switches are reliable and compliant with industry standards.
Product Specifications

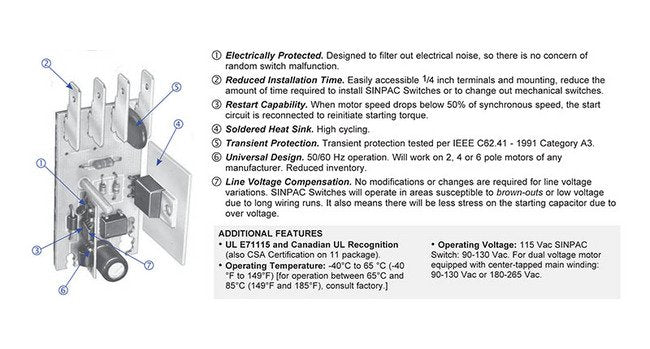

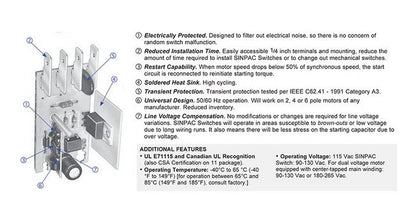

Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD

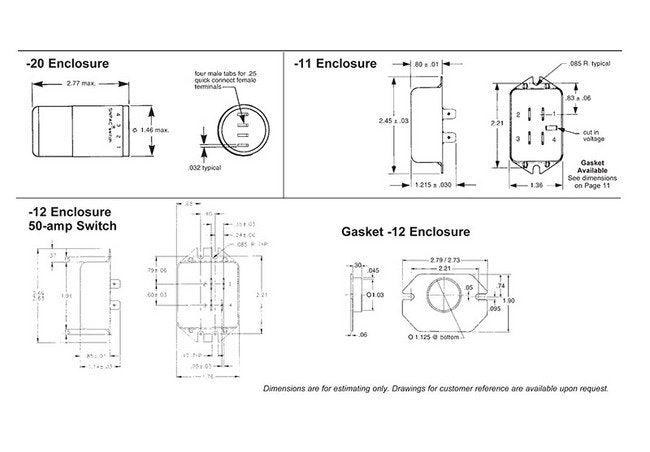

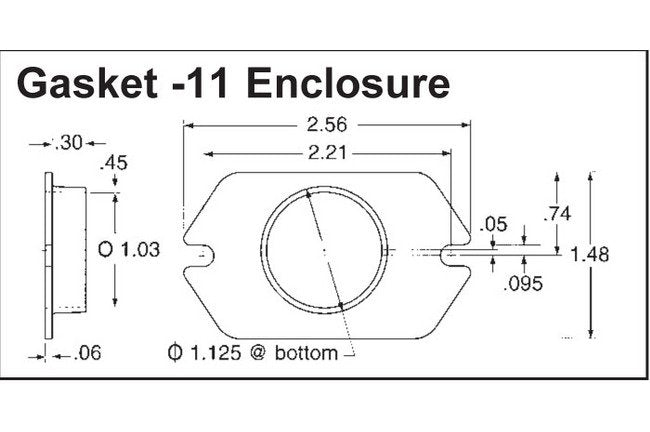

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21016-11-UA1 | 4-7-21016-20-UA1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
16 A

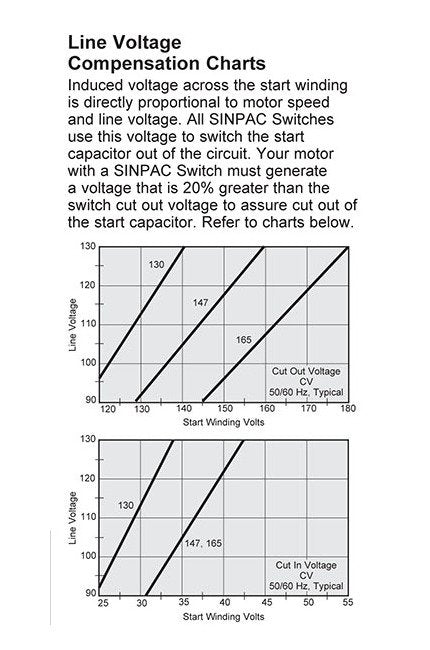

Specifications Cut In Voltage
30 V
Specifications Cut Out Voltage
130 V
Specifications Full Load Motor Current Rating 115230 Vol
8/4 A
Specifications Full Load Motor Current Rating 115 Volts
8 A
Specifications Maximum Motor
1/2 hp
