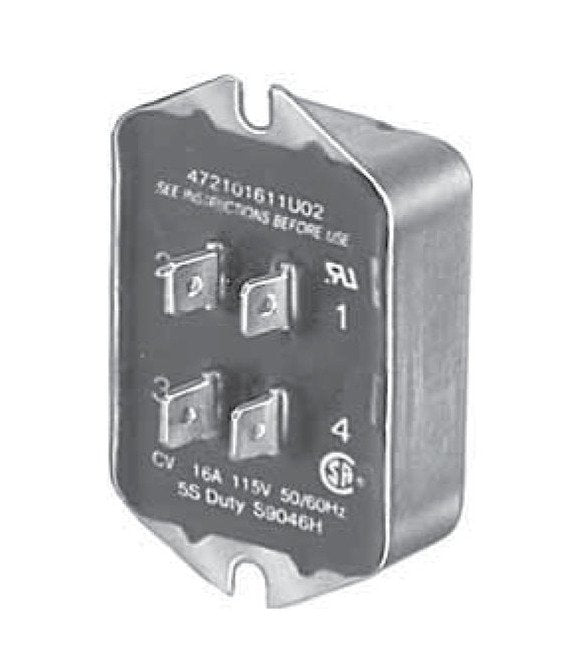

Dual Voltage Capacitor Start Motor Switch - CV Series
Dual Voltage Capacitor Start Motor Switch - CV Series
SKU:MOT-599ddf
Efficiently manage capacitor start motors with precision using the CV Series Switches. UL and CSA certified, suitable for dual voltage motors.
Regular price
$151.15
Regular price
Sale price
$151.15
Unit price
per
Initiate Order
Dual Voltage Capacitor Start Motor Switch - CV Series
$151.15
Quantity: 1
Claim Your Seller Account
Dual Voltage Capacitor Start Motor Switch - CV Series
$151.15
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CV Series Switches are designed to precisely manage capacitor start motors by extracting speed data from the voltage across the motor start winding. With a typical maximum motor rating of 3 hp and a permissible max start winding current of 50 A, these switches ensure efficient motor operation. Operating at start circuit voltages of 115 V, and featuring UL E71115, Canadian UL Recognition, and CSA Certification, these switches guarantee high-quality performance. With a temperature range of -40 °C to 65 °C (-40 °F to 149 °F), these switches are reliable even in harsh conditions. Suitable for dual voltage motors with various windings, the CV Series Switches offer flexibility and functionality for both consumer and institutional buyers.
Product Specifications

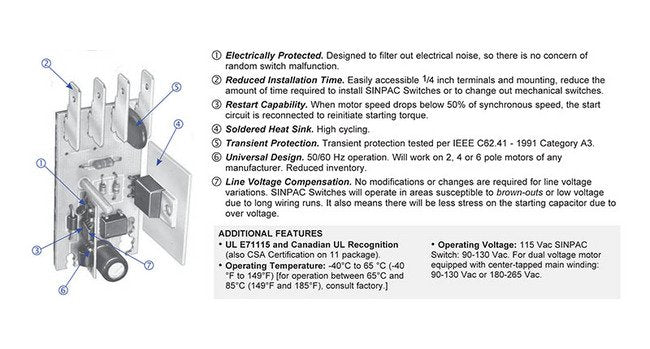

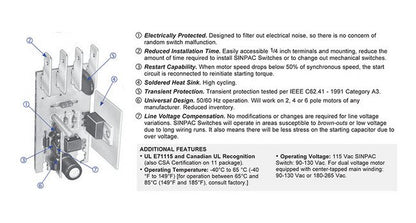

Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
151.15 USD

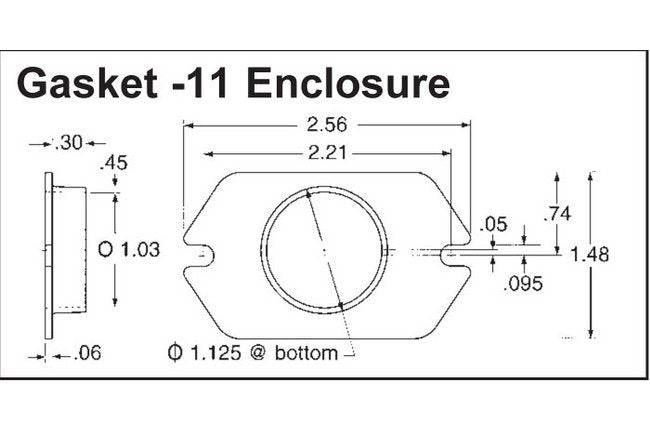

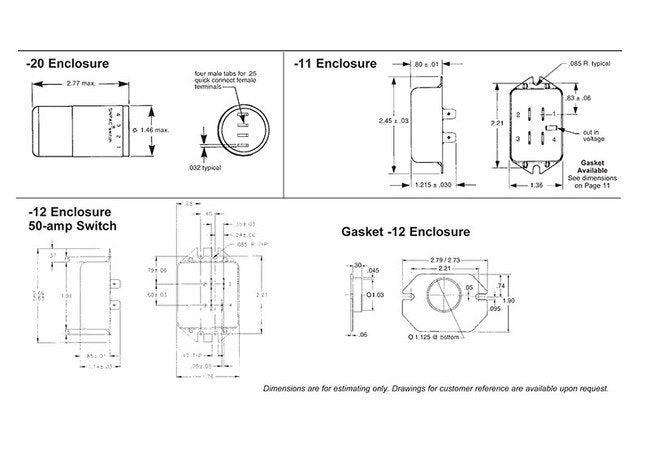

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21050-12-U01 | 4-7-21050-20-U01
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
50 A

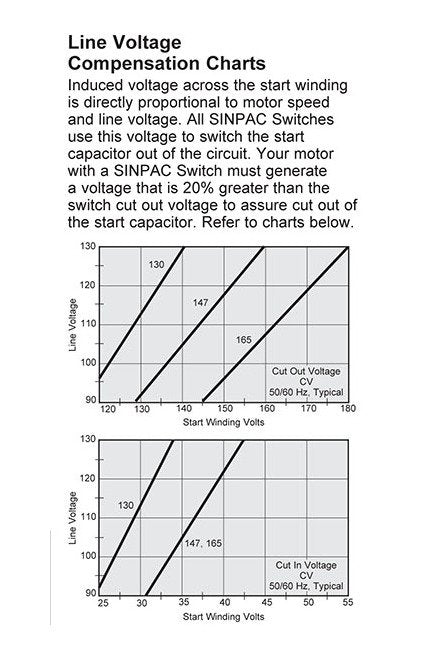

Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
165 V
Specifications Full Load Motor Current Rating 115230 Vol
25/12.5 A
Specifications Full Load Motor Current Rating 115 Volts
25 A
Specifications Maximum Motor
3 hp
