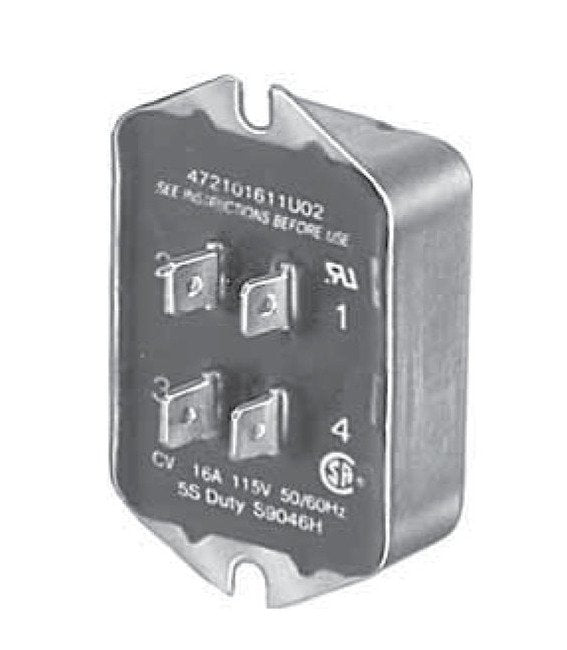

Dual Voltage Capacitor Start Motor Switch - CV Series
Dual Voltage Capacitor Start Motor Switch - CV Series
SKU:MOT-0a67d0
Efficient and reliable switch for Dual Voltage Capacitor Start Motors, with UL and CSA certifications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Voltage Capacitor Start Motor Switch - CV Series
$39.99
Quantity: 1
Claim Your Seller Account
Dual Voltage Capacitor Start Motor Switch - CV Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CV Series Switches are designed for 115 or 115/230 Voltage (VAC) Dual Voltage Capacitor Start Motors, providing essential functionality for motor start control. These switches intelligently manage the motor start circuit by comparing RPM-sensitive voltages to ensure seamless transitions. With a typical maximum motor rating of 1 hp, full load current ratings suitable for both 115V and 115/230V configurations, and a permissible max start winding current of 25A, these switches are reliable and efficient. Additionally, they come with UL, CSA, and Canadian UL Recognition certifications, ensuring compliance with industry standards. Operating between -40 °C to 65 °C (-40 °F to 149 °F), these switches offer durability and versatility for various applications.
Product Specifications

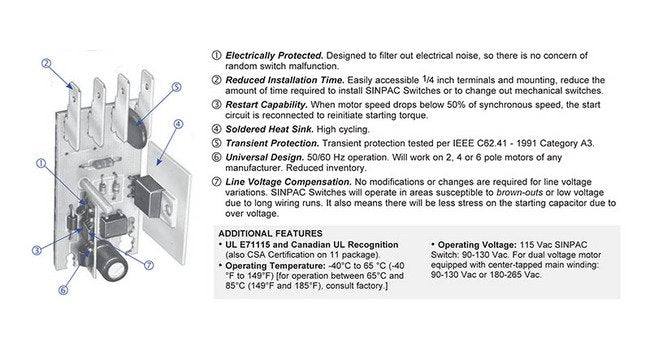

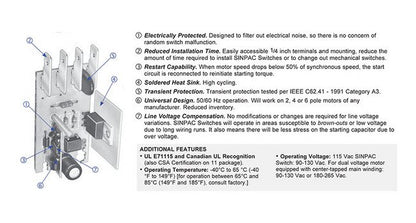

Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD

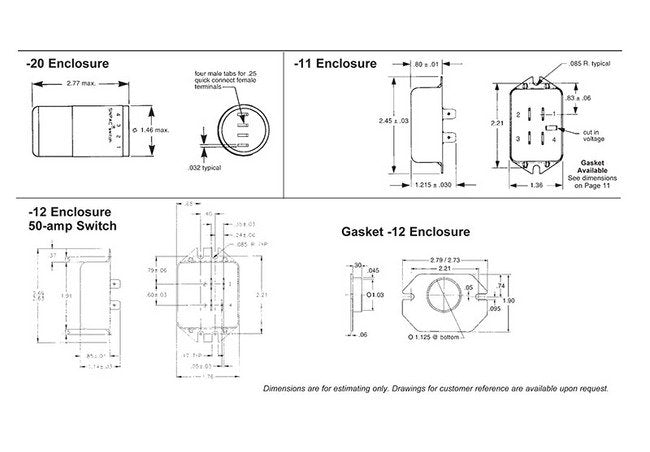

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21025-11-UA1 | 4-7-21025-20-UA1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
25 A

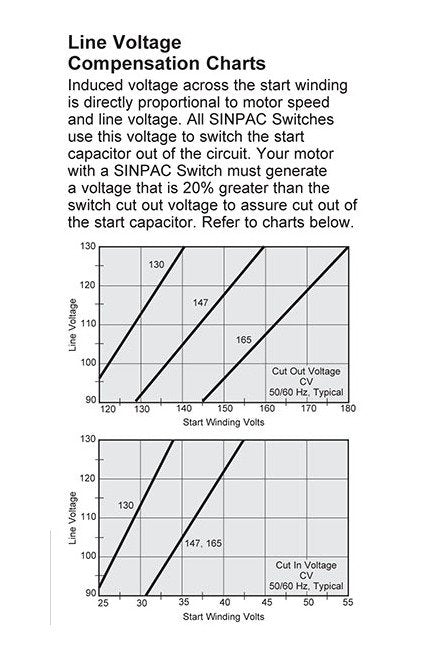

Specifications Cut In Voltage
30 V
Specifications Cut Out Voltage
130 V
Specifications Full Load Motor Current Rating 115230 Vol
12/6 A
Specifications Full Load Motor Current Rating 115 Volts
12 A
Specifications Maximum Motor
1 hp
