Dual Width Dog Bone Style Grooving Blanks, 0.265 / 0.275 in
Dual Width Dog Bone Style Grooving Blanks, 0.265 / 0.275 in
SKU:GRO-c25503
Enhance grooving precision with Dual Width Dog Bone Style Blanks in 0.265 / 0.275 in dimensions. Suitable for various grades.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Width Dog Bone Style Grooving Blanks, 0.265 / 0.275 in
$29.99
Quantity: 1
Claim Your Seller Account
Dual Width Dog Bone Style Grooving Blanks, 0.265 / 0.275 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Width Dog Bone Style Grooving Blanks offer precision engineering with dimensions of 0.265 / 0.275 inches, ensuring optimal performance in grooving applications. Crafted for durability and accuracy, these blanks feature a 90-degree angle and precise thickness to enhance cutting efficiency. Available upon request in various grades, these blanks are designed to meet the stringent requirements of institutional and government procurement standards.

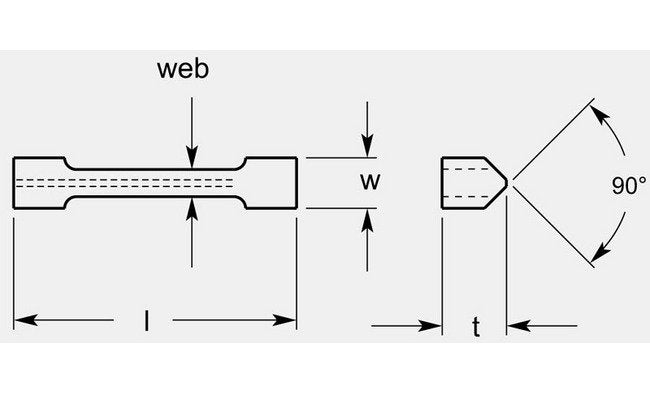

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification L
1.520 / 1.540 in
Dimensional Specification Thickness T
0.255 / 0.265 in
Dimensional Specification Web
0.134 / 0.144 in
Dimensional Specification Width W
0.265 / 0.275 in
Grade Availability Grade Availability
Available on Request
