DualVee Carbon Seal/Shield Studded Guide Wheel - Size 3, Concentric

Name: DualVee Carbon Seal/Shield Studded Guide Wheel - Size 3, Concentric
Brand: Linemaster Switch Corp.
SKU: HER-9db1bd
Price: 49.99 USD
Availability: OutOfStock

SKU:HER-9db1bd

High-quality DualVee guide wheel - Size 3, AISI 303 Stainless Steel, carbon seal/shield

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DualVee Carbon Seal/Shield Studded Guide Wheel in Size 3 is a precision-engineered solution for guiding applications. Crafted from AISI 303 stainless steel and featuring a carbon seal/shield, this guide wheel ensures long-lasting performance. With a permanently attached threaded stud and concentric, non-adjustable position, this guide wheel offers reliability and stability in various guiding tasks.

Product Specifications

Specifications Circuit

SPDT DB

Specifications Constructionstandards

NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56

Specifications Electrical Rating

Heavy pilot duty 250 Vac max. | 1/2 H.P. 125 VAC | 1 H.P. 250 VAC | 15A 125-250 VAC

Specifications Features

DriptightDusttightWatertightOiltight

Specifications Form

Specifications Note

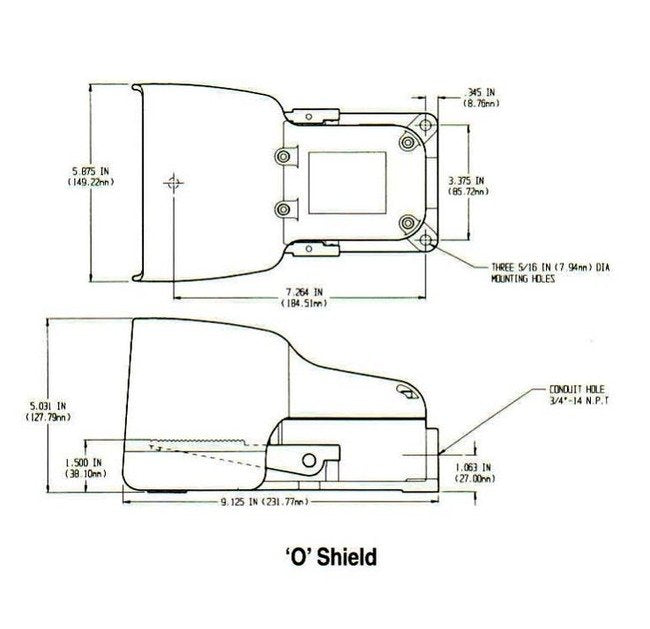

S-Denotes Momentary Contact-Press to start - release to stop, D-Denotes Maintained Contact-Press to start - Release Latch to stop, O-Denotes oversize O-shield models which accept oversized safety shoes and metatarsal foot guards.

Specifications Remarks

DB Double break model must be wired to equal voltage sources and the same polarity. The loads should be on the same sides of the line.

Specifications Size

9 x 5 3/4 x 4 3/4 Inch

Specifications Stages

Single

Specifications Weight Approx

8 lbs

DualVee Carbon Seal/Shield Studded Guide Wheel - Size 3, Concentric
