DualVee Size 3 Concentric Journal Screw Assembly Stainless Steel
DualVee Size 3 Concentric Journal Screw Assembly Stainless Steel
SKU:DOL-d8700c
Achieve precise and rigid guide wheel mounting with the DualVee Size 3 Concentric Journal Screw Assembly. Durable AISI 303 Stainless Steel.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DualVee Size 3 Concentric Journal Screw Assembly Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
DualVee Size 3 Concentric Journal Screw Assembly Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DualVee Size 3 Concentric Journal Screw Assembly is designed for precise and rigid mounting of guide wheels. Made of AISI 303 Stainless Steel, this assembly ensures durability and reliability. The concentric version allows for mounting to a fixed location, while the included washers and nuts simplify installation. With a non-adjustable position, this assembly guarantees secure placement for optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

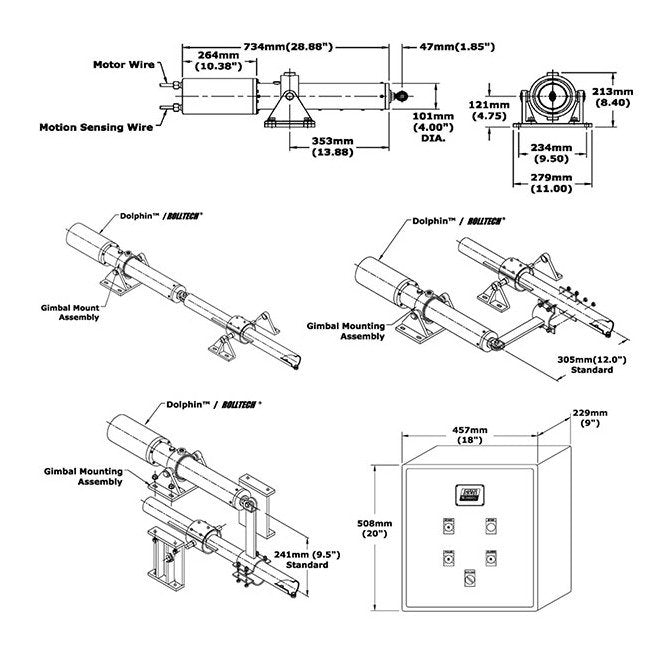

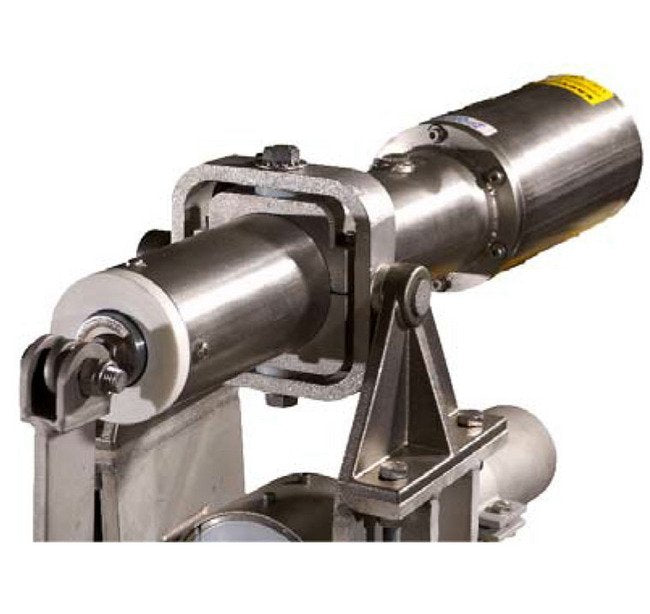

Lightweight and economical - ideal where fixed stroke length and stroke rate is acceptable - no control panel requiredCompact design - for easy installation and maintenance.Four (4) fixed speeds or adjustable stroke rate available.Variable speed requires control panel, fixed speed does not require control panel."Ball Reverser" design is simple, no reversing switches, no need to reverse motor, instant turn around at end of stroke."Gimbal Mounting" for reduced load during oscillation. Integral felt protection proximity switch recommended.The Dolphin⢠Actuator is mounted in a gimbal mounting near the balance point of the actuator allowing some multi-directional movement which provides a non-binding movement of the actuator. This arrangement is very forgiving of slight misalignment of the actuator and shower and prevents premature failure due to excessive binding loads. Split bearings with UHMW Polyethylene liners and anti-rotation bars keep the shower in correct position and allow removing the shower from the paper machine and replacing it again without realigning the bearings.Dolphin⢠shower actuator with gimbal mounting attached.
Service Service
Spare actuators, parts, and rebuild services are located in Greeneville, Tennessee.Onsite technical service is available from Greeneville, Tennessee.
Specifications Shower Length
0 to 278 in | 0 to 7 m
Specifications Standard Stroke Length
6 in | 12 in | 152 mm | 305 mm
Specifications Warranty
12 months
Technical Data Actuator Weight
50 lb
Technical Data Control Panel
Only needed for variable stroke speed applications. NEMA 4X, door safety switch, material fiberglass. 110VAC power, (2) 4 amp thermal breakers, PLC is Modicon Twido start/stop button, manual/ auto switch. Three (3) lights: start, pulse, and alarm, 4-20 ma connections for DCS.
Technical Data Control Panel Alternating Current Ac Voltage
110 V
Technical Data Control Panel Depth
9 in
Technical Data Control Panel Height
20 in
Technical Data Control Panel Width
18 in
Technical Data Lubrication
The Dolphin⢠actuator ships with oil and will not need lubrication during it's life.
Technical Data Maintenance
None
Technical Data Manufacturer
Vooner Paper Machinery, Greeneville, TN, USA
Technical Data Maximum Motor Shell Temperature
100 ºC | 212 ºF
Technical Data Motion Sensing Direct Current Dc Voltage
24 V
Technical Data Motor Alternating Current Ac Voltage Fixed Speed
110 V | 220 V
Technical Data Motor Alternating Current Ac Voltage Variable Spe
220 V
Technical Data Motor Cover Temperature
43 to 54 ºC | 110 to 130 ºF
Technical Data Motor Current Fixed Speed
0.2 A | 0.4 A
Technical Data Motor Current Variable Speed
0.3 A
Technical Data Motor Frequency Fixed Speed
50 Hz | 60 Hz
Technical Data Motor Frequency Variable Speed
50 Hz | 60 Hz
Technical Data Motor Phase Fixed Speed
1
Technical Data Motor Phase Variable Speed
3
Technical Data Motor Power Fixed Speed
0.013 hp | 0.0097 kW
Technical Data Motor Power Variable Speed
0.013 hp | 0.0097 kW
Technical Data Motor Speed Fixed Speed
60 rpm | 72 rpm
Technical Data Motor Speed Variable Speed
60 rpm | 72 rpm
Technical Data Noise
< 80 dB
Technical Data Note For Motor Fixed Speed
An integral gear box is attached for stroke rate.
Technical Data Note For Motor Temperature
A water cooled jacket is available for higher temperature environments.
Technical Data Note For Motor Variable Speed
An integral gear box is attached for stroke rate.
Technical Data Proximity Switch
Note two wires from motor housing, a motor lead and a proximity switch lead clearly marked as to how to connect. A separate power connection, 110 VAC, is needed for a panel board if used.
Technical Data Type
Dolphin⢠actuator for oscillating paper machine showers to achieve complete coverage cleaning.
Technical Data Wetted Parts
All Wetted Parts 316 Stainless Steel (SS)
