DualVee Size 4 Carbon Steel Drilled Guide Rail

Name: DualVee Size 4 Carbon Steel Drilled Guide Rail
Brand: Linemaster Switch Corp.
SKU: HER-ea61eb
Price: 79.99 USD
Availability: OutOfStock

SKU:HER-ea61eb

The DualVee Size 4 Carbon Steel Guide Rail offers precision mounting with induction hardened durability, ideal for various applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DualVee Size 4 Carbon Steel Drilled Guide Rail is engineered with 90º vee way surfaces and a mounting shoulder for precise alignment. Made from AISI 1045 carbon steel, this guide rail is induction hardened for durability, reaching a minimum of Rc 53. With 10 holes for easy mounting, this 37.00-inch rail offers flexibility in finish options including black oxide, thin dense chrome, or nickel plating.

Product Specifications

Specifications Circuit

DPDT DB

Specifications Constructionstandards

NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56

Specifications Electrical Rating

Heavy pilot duty 250 Vac max. | 1/2 H.P. 125 VAC | 1 H.P. 250 VAC | 15A 125-250 VAC

Specifications Features

DriptightDusttightWatertightOiltight

Specifications Form

Specifications Remarks

One pole of these model has an adjustable mechanism that enables you to make or break one pole before the other. â DB Double break model must be wired to equal voltage sources and the same polarity. The loads should be on the same sides of the line.

Specifications Size

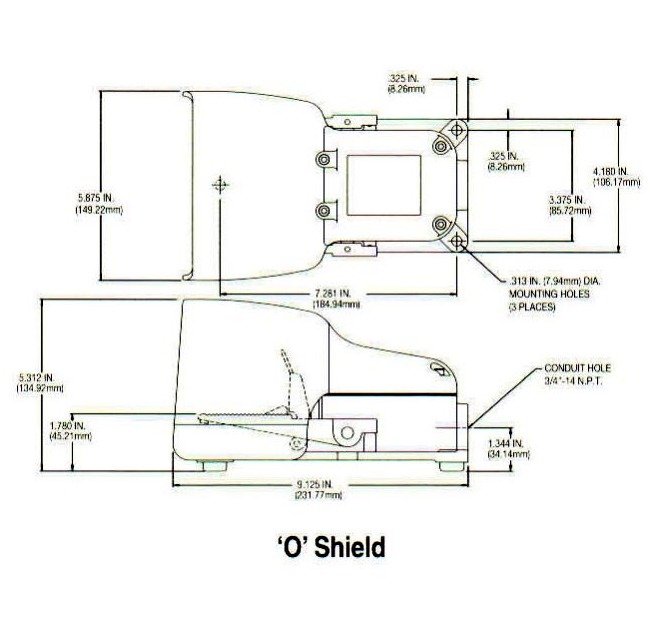

9 x 5 3/4 x 4 3/4 Inch

Specifications Stages

Single

Specifications Weight Approx

8 lbs

DualVee Size 4 Carbon Steel Drilled Guide Rail
