DualVee SWA Size 3 Stainless Studded Guide Wheel

Name: DualVee SWA Size 3 Stainless Studded Guide Wheel
Brand: Linemaster Switch Corp.
SKU: HER-25d8bb
Price: 34.99 USD
Availability: OutOfStock

SKU:HER-25d8bb

Precision stainless guide wheel for reliable and smooth motion control in high-temperature environments.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DualVee® SWA Size 3 Stainless Studded Guide Wheel is a precision-engineered solution for reliable guidance applications. Crafted from high-grade AISI 303 stainless steel, this guide wheel offers exceptional durability and performance in high-temperature environments. Designed for concentric, non-adjustable positioning, it features a permanently attached threaded stud with a long mounting shank for secure installation. Ideal for guiding mechanisms, this wheel ensures smooth and precise motion control, making it a must-have for industrial and institutional settings.

Product Specifications

Specifications Circuit

SPDT DB

Specifications Constructionstandards

NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56

Specifications Electrical Rating

Heavy pilot duty 250 Vac max. | 1/2 H.P. 125 VAC | 1 H.P. 250 VAC | 15A 125-250 VAC

Specifications Features

DriptightDusttightWatertightOiltight

Specifications Form

Specifications Note

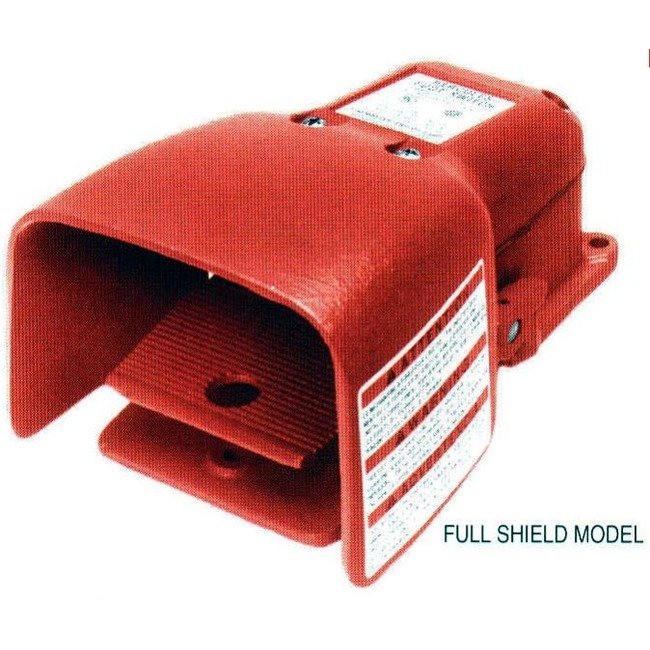

S-Denotes Momentary Contact-Press to start - release to stop, D-Denotes Maintained Contact-Press to start - Release Latch to stop, O-Denotes oversize O-shield models which accept oversized safety shoes and metatarsal foot guards.

Specifications Remarks

DB Double break model must be wired to equal voltage sources and the same polarity. The loads should be on the same sides of the line.

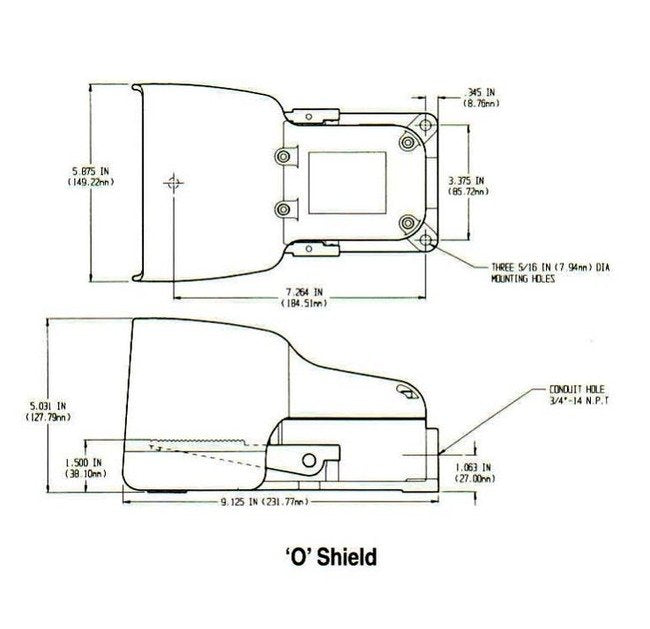

Specifications Size

9 x 5 3/4 x 4 3/4 Inch

Specifications Stages

Two

Specifications Weight Approx

8 lbs
