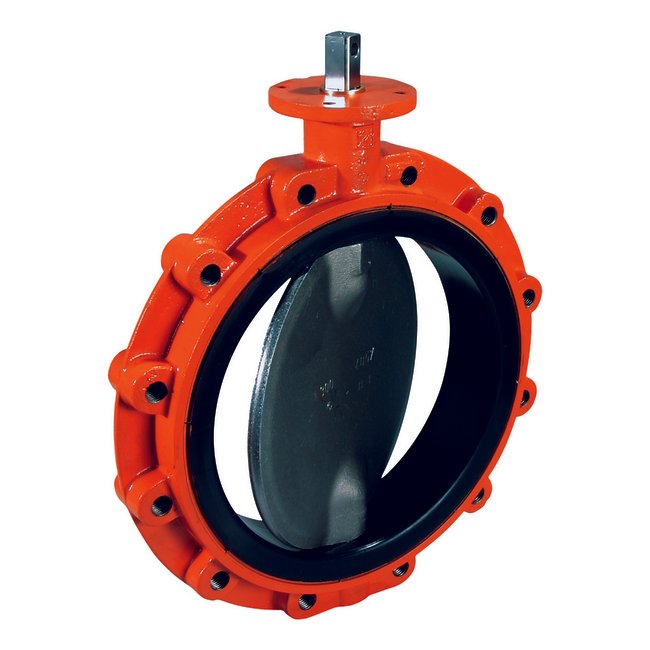

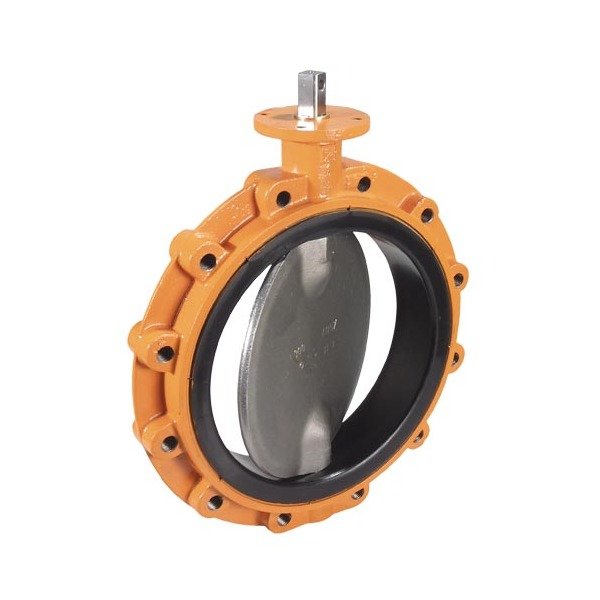

The Series EVTLS Bare Shafted Ductile Iron Lug Type DIN Butterfly Valve is a versatile solution for industrial applications. With a DN500 size and PN16 rating, this valve offers precise control and reliable shut-off at pressures up to 16 bar. Featuring a ductile iron body, stainless steel shaft, and EPDM liner, it ensures durability and corrosion resistance. Compliant with DIN standards and available with various type approvals, this valve is suitable for diverse environments. Actuated by a bare shaft, it functions as both an isolating and regulating valve, making it a reliable choice for institutional and government procurement needs.
Product Specifications

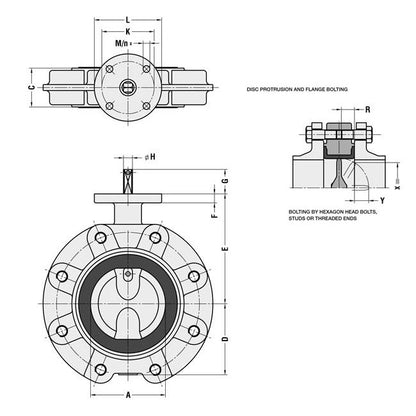

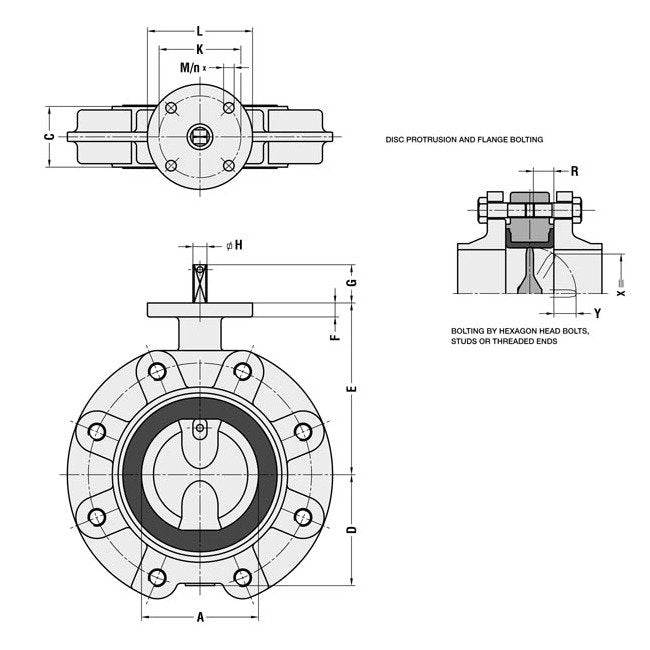

Specifications A
486 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
576 mm
Specifications C
127 mm
Specifications D
360 mm
Specifications E
413 mm
Specifications F
25 mm
Specifications Flange Connections
PN 16
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications R Max At Cl 150
62 mm
Specifications R Max At Pn 10
62 mm
Specifications R Max At Pn 16
62 mm
Specifications R Max At Pn 6
62 mm
Specifications R Min At Cl 150
60 mm
Specifications R Min At Pn 10
54 mm
Specifications R Min At Pn 16
54 mm
Specifications R Min At Pn 6
48 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN500 - 20" | 500 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
130.0 kg
Specifications X
470 mm
Specifications Y
180 mm
