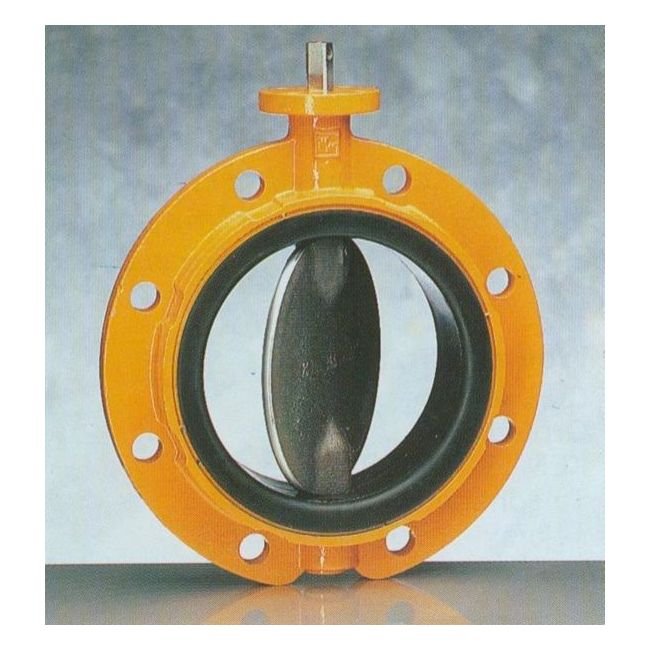

Ductile Iron Gear Operated Butterfly Valve, DN250 PN16
Ductile Iron Gear Operated Butterfly Valve, DN250 PN16
SKU:VAL-337ef5
High-performance DN250 PN16 Ductile Iron Butterfly Valve for precise control in industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Ductile Iron Gear Operated Butterfly Valve, DN250 PN16
$499.99
Quantity: 1
Claim Your Seller Account
Ductile Iron Gear Operated Butterfly Valve, DN250 PN16
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVML Gear Operated Ductile Iron Mono Flanged Type DIN Butterfly Valve is a high-performance valve designed for precise control and reliable shut-off in industrial applications. With a DN250 size and PN16 rating, this valve features robust construction with materials like Ductile Iron body, Stainless Steel shaft, and NBR liner. It offers versatile actuation possibilities with a Gear mechanism, ensuring smooth operation. Compliant with DIN standards and meeting various certifications like ABS, DNV, and FM, this valve is ideal for institutional buyers seeking quality and durability.
Product Specifications
Specifications A
250 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | RIN | RMRS | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
315 mm
Specifications C
114 mm
Specifications D
194 mm
Specifications E
245 mm
Specifications F
15 mm
Specifications Flange Connections
PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications S
23 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN250 - 10" | 250 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
28.0 kg
Specifications X
223 mm
Specifications Y
68 mm
