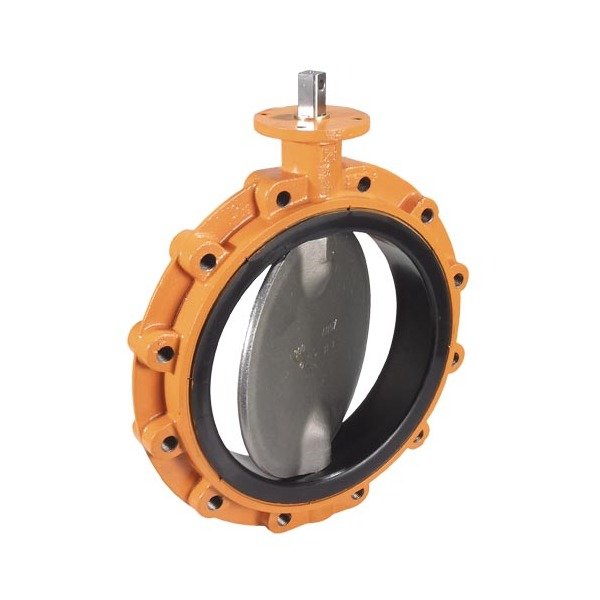

• Ductile Iron Lug Butterfly Valve DN400 PN16 - Image 1
  • Ductile Iron Lug Butterfly Valve DN400 PN16 - Image 2

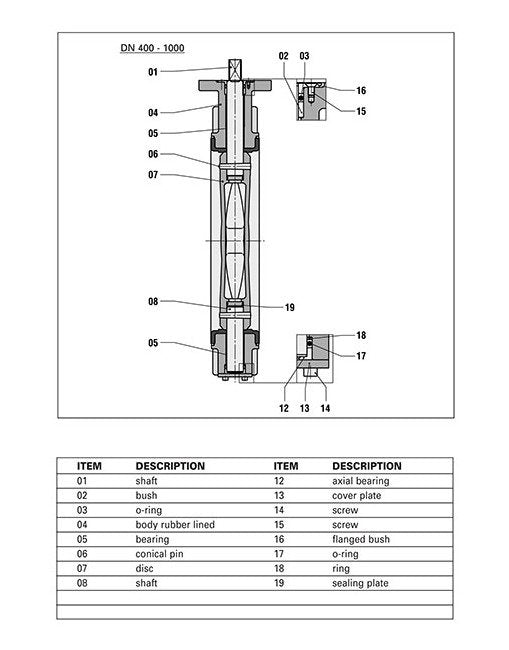

  • Ductile Iron Lug Butterfly Valve DN400 PN16 - Image 3

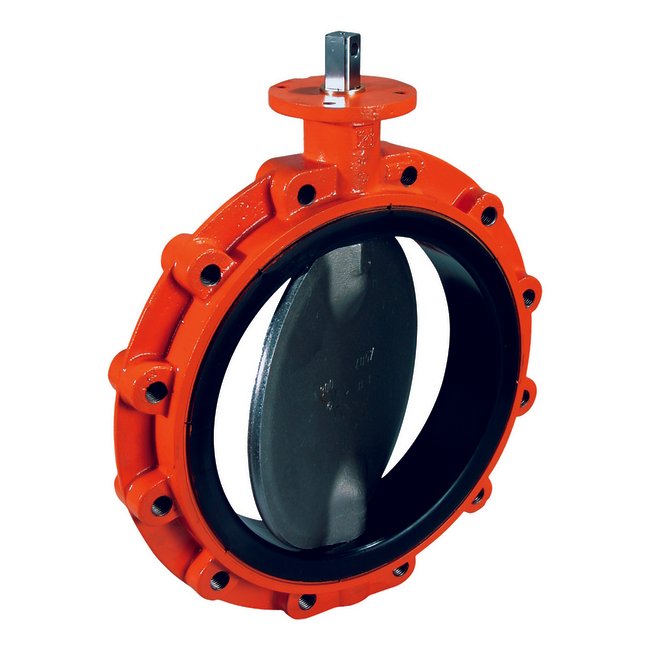

  • Ductile Iron Lug Butterfly Valve DN400 PN16 - Image 4
1 4
World Wide Metric, Inc. →

Ductile Iron Lug Butterfly Valve DN400 PN16

Ductile Iron Lug Butterfly Valve DN400 PN16

VAL-423d1f

Series EVTLS Bare Shafted Ductile Iron Lug Butterfly Valve - Reliable, durable, and compliant with DIN standards for precise flow control.

$699.99
$699.99
Sale

Initiate Order

Ductile Iron Lug Butterfly Valve DN400 PN16

Ductile Iron Lug Butterfly Valve DN400 PN16

$699.99

Quantity: 1

Claim Your Seller Account

Ductile Iron Lug Butterfly Valve DN400 PN16

Ductile Iron Lug Butterfly Valve DN400 PN16

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVTLS Bare Shafted Ductile Iron Lug Butterfly Valve is a reliable solution for industrial applications requiring precise flow control. With a robust construction of ductile iron and stainless steel components, this valve ensures durability and corrosion resistance. Its versatile design allows for both isolating and regulating functions, meeting PN 16 pressure rating standards. The Nitrile Butadiene Rubber liner provides enhanced sealing performance, while the ISO 5211 mounting pad enables easy actuation. This valve complies with DIN standards and is compatible with various flange connections, making it a versatile choice for diverse industrial settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

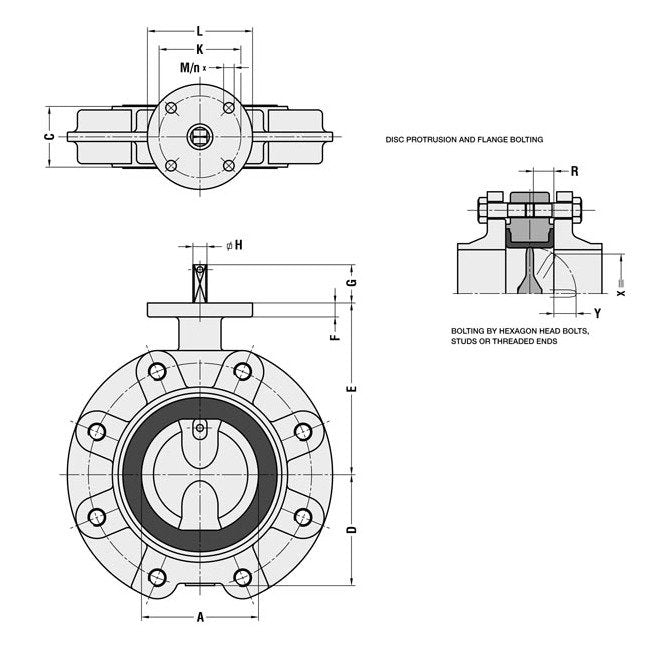

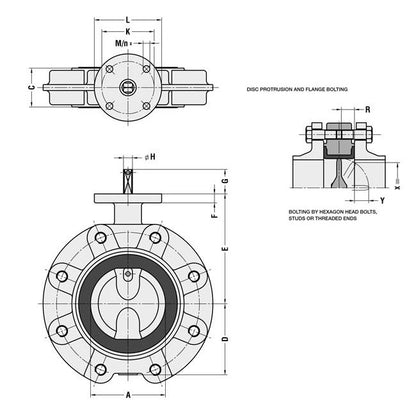

Specifications A
386 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
470 mm
Specifications C
102 mm
Specifications D
308 mm
Specifications E
363 mm
Specifications F
25 mm
Specifications Flange Connections
PN 16
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications R Max At Cl 150
50 mm
Specifications R Max At Pn 10
50 mm
Specifications R Max At Pn 16
50 mm
Specifications R Max At Pn 6
50 mm
Specifications R Min At Cl 150
47 mm
Specifications R Min At Pn 10
42 mm
Specifications R Min At Pn 16
42 mm
Specifications R Min At Pn 6
39 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN400 - 16" | 400 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
85.0 kg
Specifications X
373 mm
Specifications Y
142 mm
