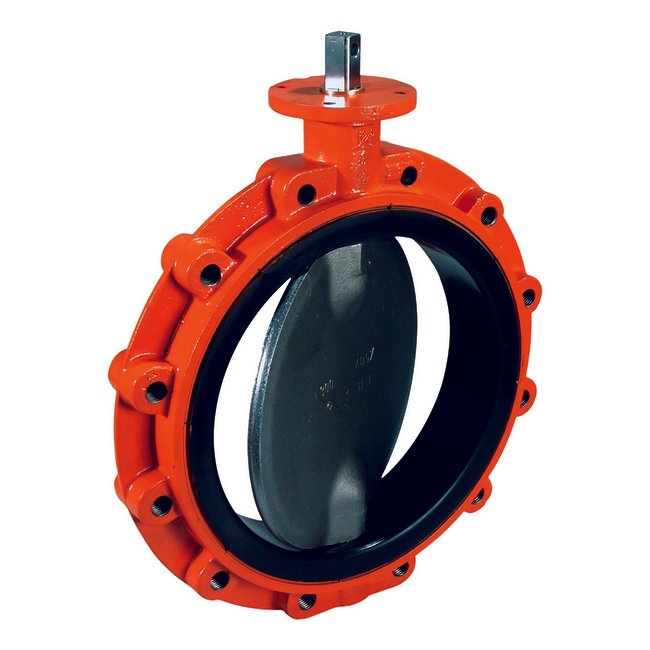

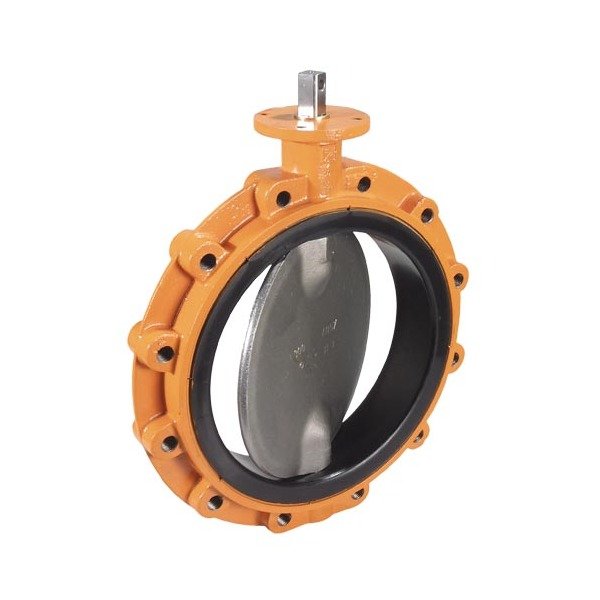

The Series EVTLS Gear Operated Ductile Iron Lug Type DIN Butterfly Valve is a reliable pneumatic valve designed for industrial applications. With a robust construction and precise engineering, this valve ensures smooth operation and durability. It features a size of DN500 (20 inches), suitable for a wide range of flow control systems. The valve functions as both an isolating valve and a regulating valve, offering flexibility in various settings. Compliant with DIN standards, this valve is suitable for applications requiring PN 10 pressure ratings. The body material is made of ductile iron, while the shaft is crafted from stainless steel for enhanced strength and corrosion resistance.
Product Specifications

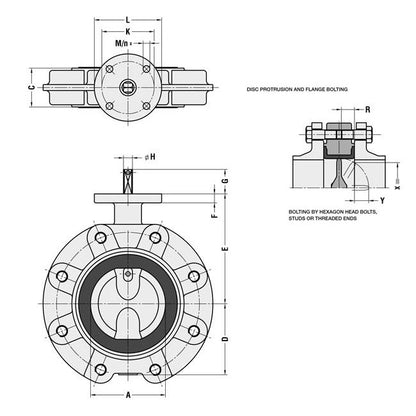

Specifications A
486 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
576 mm
Specifications C
127 mm
Specifications D
360 mm
Specifications E
413 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications R Max At Cl 150
62 mm
Specifications R Max At Pn 10
62 mm
Specifications R Max At Pn 16
62 mm
Specifications R Max At Pn 6
62 mm
Specifications R Min At Cl 150
60 mm
Specifications R Min At Pn 10
54 mm
Specifications R Min At Pn 16
54 mm
Specifications R Min At Pn 6
48 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN500 - 20" | 500 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
130.0 kg
Specifications X
470 mm
Specifications Y
180 mm
