Ductile Iron Lug Type Butterfly Valve - Series EVTLS

Name: Ductile Iron Lug Type Butterfly Valve - Series EVTLS
Brand: World Wide Metric, Inc.
SKU: VAL-29cd13
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-29cd13

Series EVTLS Ductile Iron Lug Butterfly Valve - DN350, PN10, Bare Shafted - Reliable and Versatile

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

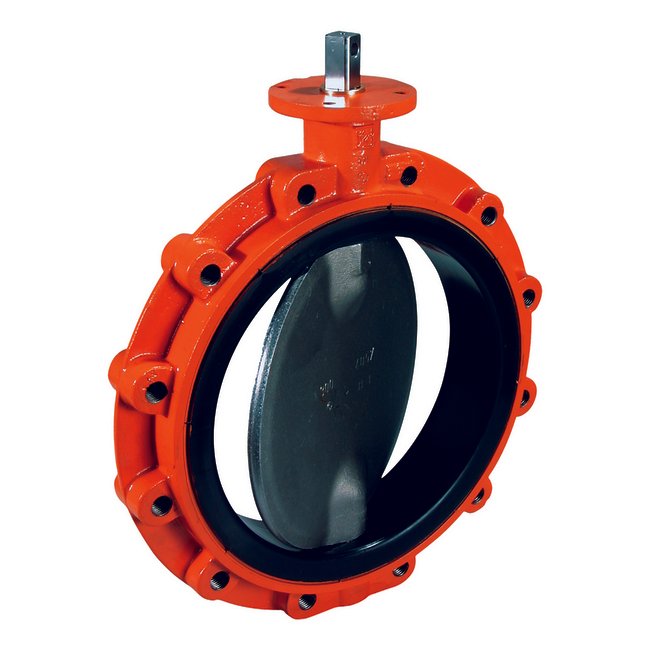

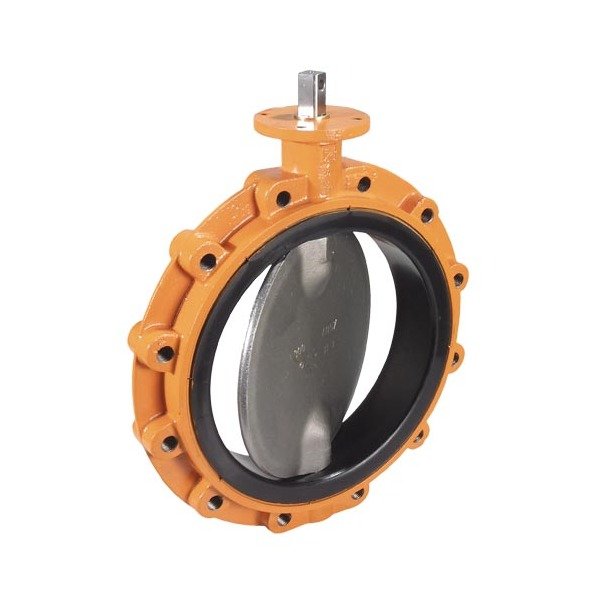

The Series EVTLS Bare Shafted Ductile Iron Lug Type DIN Butterfly Valve is a reliable solution for industrial applications. With a size of DN350 and PN10 rating, it serves as both an isolating and regulating valve with solid construction from ductile iron. The valve boasts versatile actuation possibilities, diverse material options, and adherence to DIN standards, ensuring robust performance and longevity in fluid control systems.

Product Specifications

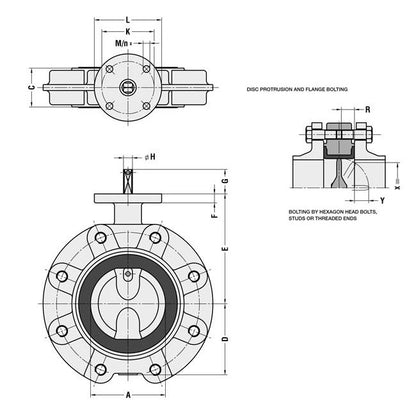

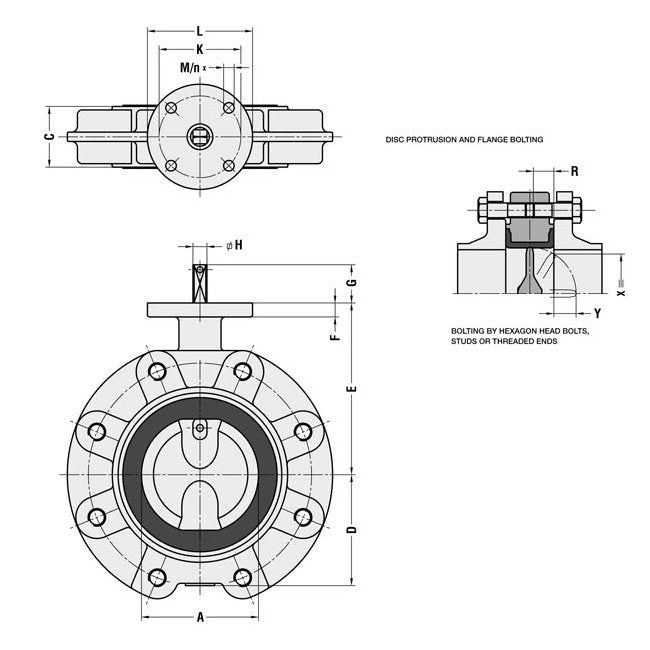

Specifications A

336 mm

Specifications Actuation Possibilities

Bare

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC

Specifications Body Material

Ductile Iron

Specifications B Diameter

405 mm

Specifications C

78 mm

Specifications D

256 mm

Specifications E

315 mm

Specifications F

15 mm

Specifications Flange Connections

PN 10

Specifications G

45 mm

Specifications H Diameter

24 mm

Specifications Iso 5211

F10

Specifications K

102 mm

Specifications L

125 mm

Specifications Liner Material

Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

11 mm

Specifications N Number Of Holes

Specifications R Max At Cl 150

38 mm

Specifications R Max At Pn 10

38 mm

Specifications R Max At Pn 16

38 mm

Specifications R Max At Pn 6

38 mm

Specifications R Min At Cl 150

34 mm

Specifications R Min At Pn 10

27 mm

Specifications R Min At Pn 16

30 mm

Specifications R Min At Pn 6

23 mm

Specifications Shaft Material

Stainless Steel 1.4462

Specifications Size

DN350 - 14" | 350 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

50.0 kg

Specifications X

327 mm

Specifications Y

129 mm
