Ductile Iron Lug-Type DIN Butterfly Valve DN100 PN16 Lever Operated
Ductile Iron Lug-Type DIN Butterfly Valve DN100 PN16 Lever Operated
SKU:VAL-377b71
Series EVTLS DN100 PN16 Lever-Operated Butterfly Valve for precise isolation & regulation, DIN compliant
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Ductile Iron Lug-Type DIN Butterfly Valve DN100 PN16 Lever Operated
$549.99
Quantity: 1
Claim Your Seller Account
Ductile Iron Lug-Type DIN Butterfly Valve DN100 PN16 Lever Operated
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

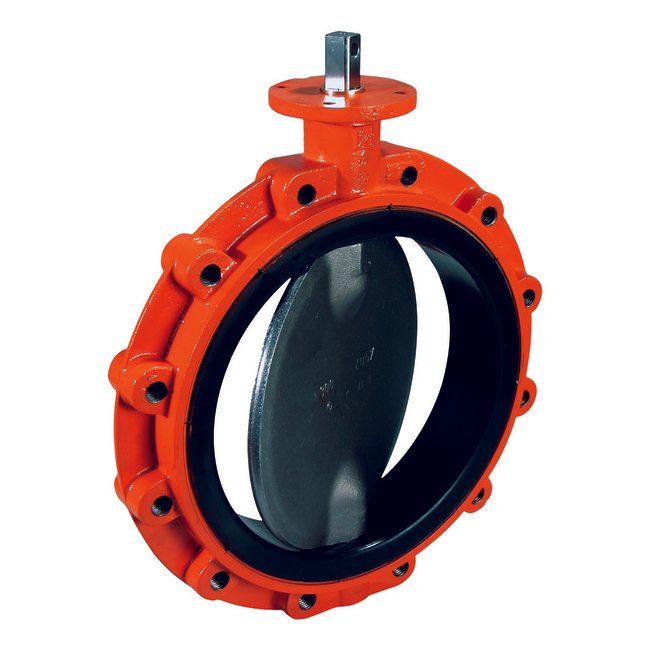

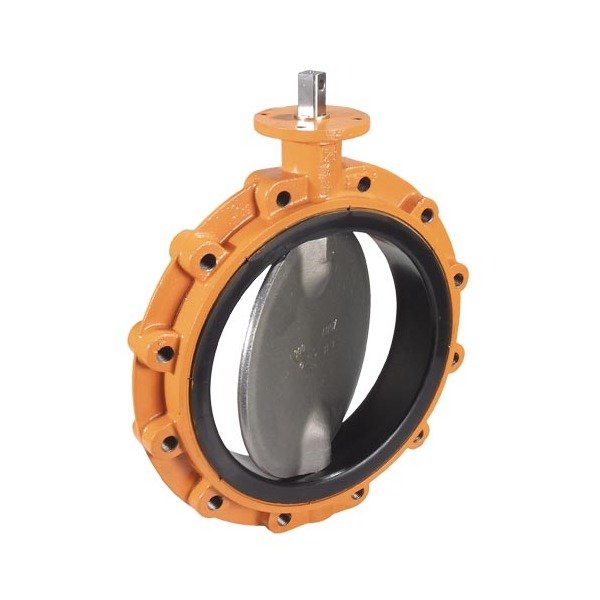

The Series EVTLS Lever Operated Ductile Iron, Lug Type DIN Butterfly Valve in DN100 size is a versatile valve designed for isolating and regulating applications. With a robust construction of Ductile Iron body, Stainless Steel shaft, and EPDM liner, this valve ensures durability and reliable performance. It features PN16 Flange Connections, operates at pressures up to 16 bar, and offers multiple actuation possibilities. Compliant with DIN standards, this valve is suitable for various industrial settings requiring high shut-off pressures. With approvals from ABS, UL, and more, it meets stringent quality standards for institutional procurements.

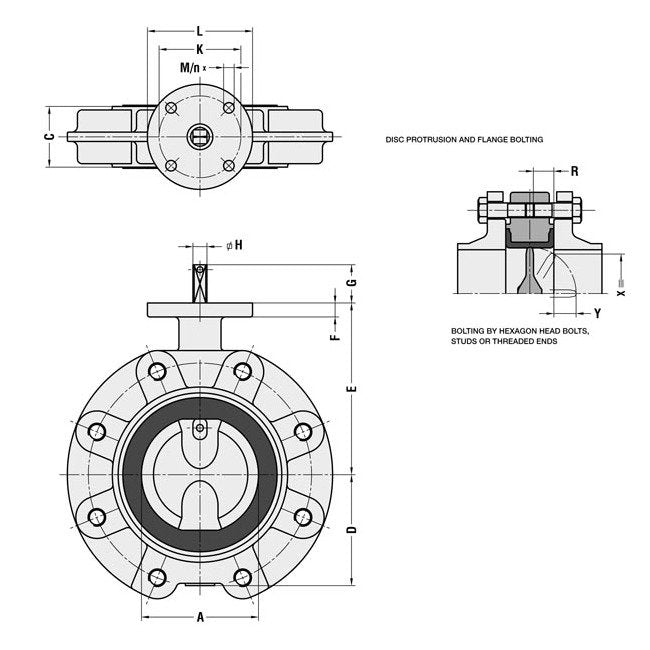

Product Specifications
Specifications A
100 mm
Specifications Actuation Possibilities
Lever
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
150 mm
Specifications C
52 mm
Specifications D
98 mm
Specifications E
147 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
12 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
25 mm
Specifications R Min
22 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN100 - 4" | 100 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
12.0 kg
Specifications X
86 mm
Specifications Y
24 mm
