Ductile Iron Lug Type DIN Butterfly Valve DN200
Ductile Iron Lug Type DIN Butterfly Valve DN200
SKU:VAL-6afcbd
Series EVTLS Bare Shafted Ductile Iron Butterfly Valve - Reliable, high-performance valve meeting DIN standards for industrial use.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Ductile Iron Lug Type DIN Butterfly Valve DN200
$399.99
Quantity: 1
Claim Your Seller Account
Ductile Iron Lug Type DIN Butterfly Valve DN200
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVTLS Bare Shafted Ductile Iron Lug Type DIN Butterfly Valve DN200 is a premium valve designed for industrial applications. With a PN16 rating, this valve provides reliable performance in regulating and isolating flow. Constructed from high-quality materials like GGG40 Ductile Iron and Stainless Steel 1.4462, it ensures durability and corrosion resistance. The valve meets stringent DIN standards and is approved by ABS, BV, UL, and more, making it ideal for government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

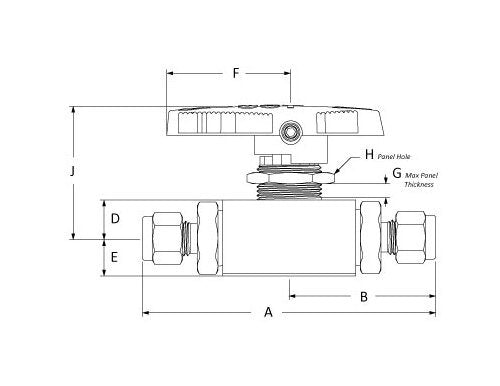

Specifications A
200 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
262 mm
Specifications C
60 mm
Specifications D
158 mm
Specifications E
204 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
29 mm
Specifications R Min
25 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN200 - 8" | 200 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
25.0 kg
Specifications X
191 mm
Specifications Y
70 mm
