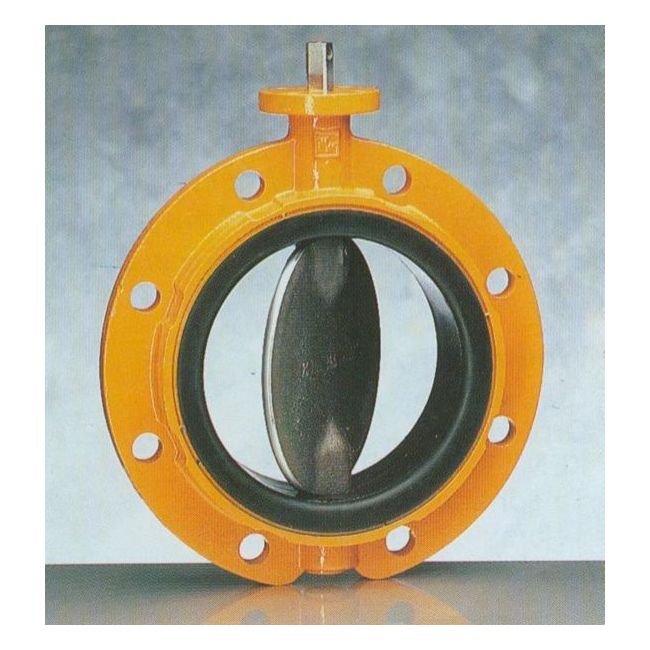

The Series EVML Ductile Iron Mono Flanged DIN Butterfly Valve is a top-of-the-line solution for fluid control. With a DN350 size and PN16 rating, this valve offers exceptional durability and performance. Featuring bare shaft actuation, it serves as both an isolating and regulating valve, capable of handling shut off pressures up to 16 bar. Crafted from high-quality materials like GG40 Ductile Iron and EPDM liner, it ensures reliability in diverse industrial applications. This valve complies with DIN standards and holds approvals from ABS, DNV, and other leading certification bodies.
Product Specifications
Specifications A
336 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | RIN | RMRS | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
405 mm
Specifications C
127 mm
Specifications D
256 mm
Specifications E
315 mm
Specifications F
15 mm
Specifications Flange Connections
PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications S
26 mm
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN350 - 14" | 350 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
50.0 kg
Specifications X
311 mm
Specifications Y
105 mm
