Series EVCS DN80 Ductile Iron Butterfly Valve with lever operation, PN6, for efficient flow control in industrial settings.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

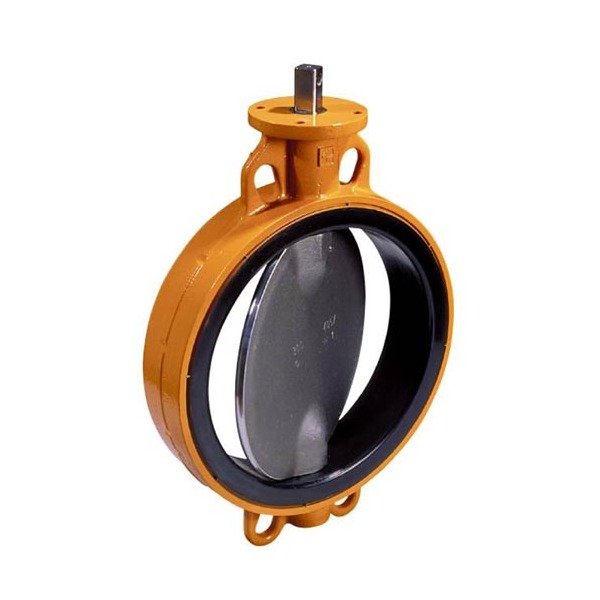

The Series EVCS Lever Operated Ductile Iron Semi Lug Wafer Type DIN Butterfly Valve is a high-quality DN80 (3") valve designed for superior performance in industrial applications. With a reliable lever actuation feature, this valve offers precise isolating and regulating functions. Constructed from robust materials such as GGG40 Ductile Iron and Nitrile Butadiene Rubber (NBR) liner, it ensures durability and efficient flow control. Compliant with DIN standards, the valve provides a shut-off pressure of 10-16 bar, making it ideal for demanding environments.

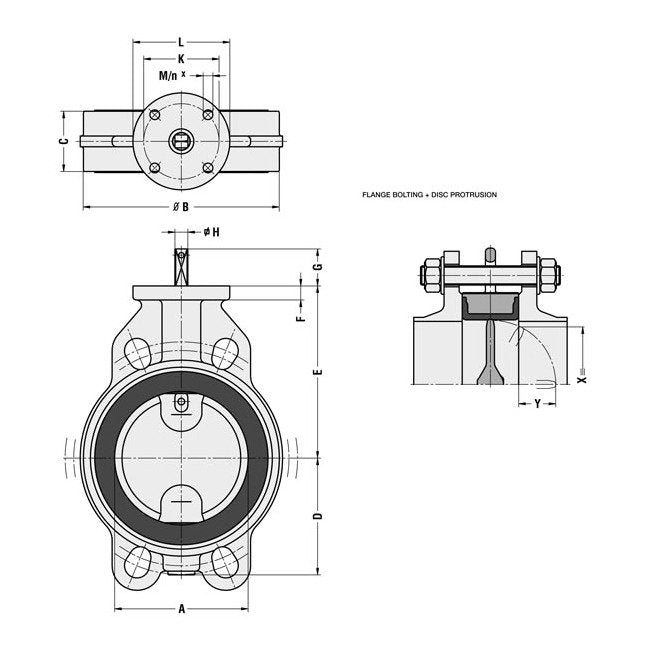

Product Specifications

Specifications A

80 mm

Specifications Actuation Possibilities

Lever

Specifications Available Type Approvals

Specifications Body Material

Ductile Iron

Specifications B Diameter

130 mm

Specifications C

46 mm

Specifications D

78 mm

Specifications E

133 mm

Specifications F

12 mm

Specifications Flange Connections

PN 6

Specifications G

34 mm

Specifications H Diameter

10 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications Shaft Material

Aluminum Bronze

Specifications Size

DN80 - 3" | 80 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

3.9 kg

Specifications X

66 mm

Specifications Y

17 mm
