Dunkermotoren 0.315 Nm AC Motor

Dunkermotoren 0.315 Nm AC Motor

KDD-8f8179

Efficient & durable Dunkermotoren 0.315 Nm AC Motor, IP65 protected, VDE 0530 insulation, CQC & UL certified.

$249.99
$249.99
Sale

Initiate Order

Dunkermotoren 0.315 Nm AC Motor

Dunkermotoren 0.315 Nm AC Motor

$249.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren 0.315 Nm AC Motor

Dunkermotoren 0.315 Nm AC Motor

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

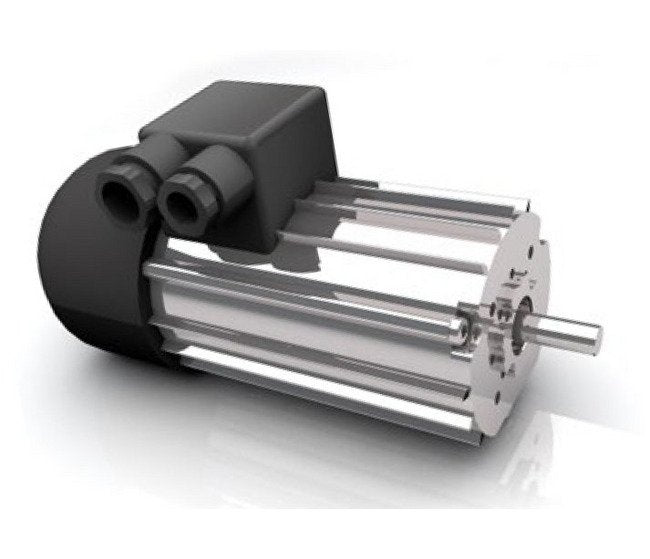

The Dunkermotoren DR Series 0.315 Nm Nominal Torque MN AC Motor is a rugged and maintenance-free solution ideal for various applications. With ball bearings, surface cooling, and a reversible rotational direction, this motor ensures maximum lifetime and efficiency. It meets IP65 protection standards, VDE 0530 insulation class F, CQC, and UL certifications, making it a reliable choice for institutional and government procurement.

Product Specifications

Additional Information Additional Information
Can be combined with gearboxes and brakesIP 54 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class FSurface protected by aluminum housing
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Δ) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
370 g/cm²
Technical Specs Nominal Output Power Pn
87 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.315 N·m
Technical Specs Nominal Voltage
230 V | 400 V
Technical Specs Power
76 to 87 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Pull Out Torque Mk
0.628 N·m
Technical Specs Rated Current In
0.31 A
Technical Specs Starting Torque Ma
0.665 N·m
Technical Specs Weight M B 14 Din 42950
2.00 kg
