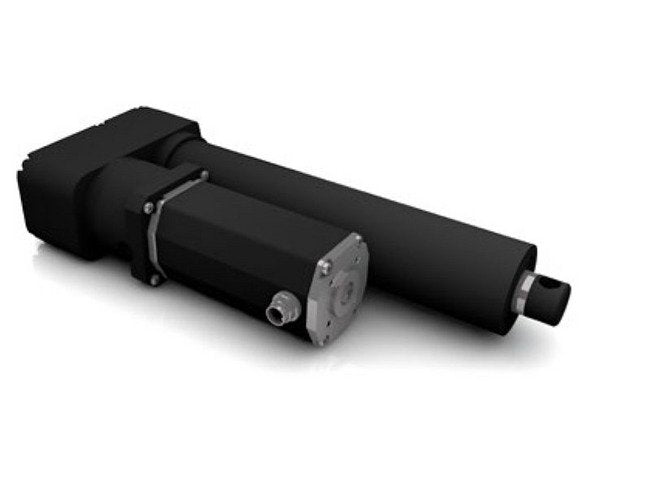

Dunkermotoren 10.000 N Constant Force Electric Cylinder
Dunkermotoren 10.000 N Constant Force Electric Cylinder
SKU:ELE-29302a
Industry-leading Dunkermotoren 10.000 N Electric Cylinder: High force, precision strokes up to 700 mm, advanced features for versatile industrial applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Dunkermotoren 10.000 N Constant Force Electric Cylinder
$1,299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 10.000 N Constant Force Electric Cylinder
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren 10.000 N Constant Force Electric Cylinder is a robust lifting solution designed for maximum durability and precision. With strokes ranging up to 700 mm, this electric cylinder features brushless DC-Servomotors, integrated gear and brake, and an integrated Gore Tex membrane for superior performance. Offering a constant force of 10.000 N and a maximum traverse speed of 9 mm/s, this cylinder ensures reliable operation in various industrial applications. With advanced features like service interface, multiple BUS interfaces availability, and high force capability, it presents a versatile and efficient alternative to pneumatic/hydraulic cylinders. Compliance with industry standards ensures seamless integration into institutional setups, making it an ideal choice for demanding procurement needs.
Product Specifications
Additional Information Additional Information
Alternative to pneumatic/hydraulic cylindersCompact and space-savingEasy configuration of up to 14 positions (IO dMove motors)Various BUS interfaces available (CO, PN, EC, EI dPro motors)
Features Features
Service interfaceCANopen version availableEtherCAT version availableProfinet version availableRS485 version availableCondition monitoringDigital labelHigh/Premium efficiencyLifetime lubricationLow temperatureHigh forceIO modeOscilloscope software availableSupply voltageAnalog inputsDigital inputsDigital outputsBlock commutationVibration resistanceProgrammableSelf-lockingPositioning
Technical Specs Ambient Temperature
-40 to +85 ºC
Technical Specs Backlash
0.6 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
10.000 N
Technical Specs Duty Cycle 85 Second S On 340 Second S Off
20 %
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Gearbox Reduction
25.8385 i
Technical Specs Maximum Traverse Speed
9 mm/s
Technical Specs Motor Type
BG 66x50 dMove
Technical Specs Nominal Current
7.5 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Note For Nominal Direct Current Dc Voltage
On request 12V or 48V version
Technical Specs Note For Stroke Length
500/600/700 mm - On request
Technical Specs No Load Current
2 A
Technical Specs Overload Protection
14.000 N
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Salt Spray Test International Organization For S
192 h
Technical Specs Spindle Pitch
5 mm
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm | 700 mm
