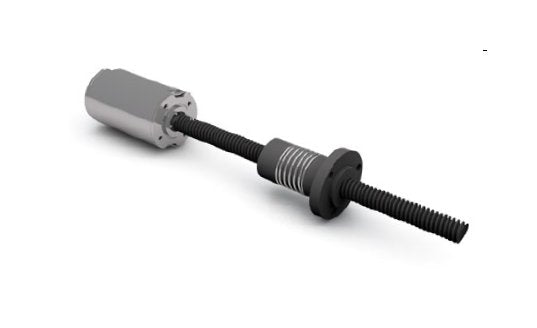

Dunkermotoren 102N Nominal Force Spindle Motor

Name: Dunkermotoren 102N Nominal Force Spindle Motor
Brand: Dunkermotoren
SKU: SPI-976ffc
Price: 899.99 USD
Availability: OutOfStock

SKU:SPI-976ffc

Enhance precision and efficiency with Dunkermotoren's 102N Nominal Force Spindle Motor. Maintenance-free, with robust feedback integration & CE/UL compliance.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Dunkermotoren 102N Nominal Force Spindle Motor is a cutting-edge solution ideal for industrial applications requiring precise positioning and high efficiency. This maintenance-free motor features a coated stainless steel spindle, IO Mode, high dynamic capabilities, and is available with CANopen version. With industry-leading feedback integration, vibration resistance, and compliance with European Conformity (CE) and Underwriters Laboratories (UL) standards, this spindle motor ensures reliable performance in demanding environments.

Product Specifications

Features Features

IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance

Technical Specs Brands

Dunkermotoren

Technical Specs Continous Peak Force

324 N

Technical Specs Feedback Integrated

1024 cycles/rev | 2000 cycles/rev | 4096 cycles/rev

Technical Specs Gear Type

LSM 13

Technical Specs Industry Standardscertifications

European Conformity (CE) | Underwriters Laboratories (UL)

Technical Specs Maximum Stroke

150 mm

Technical Specs Maximum Stroke With Anti Backlash Nut

134 mm

Technical Specs Nominal Current

2.7 A

Technical Specs Nominal Direct Current Dc Voltage

24 V

Technical Specs Nominal Force

102 N

Technical Specs Nominal Speed

275 mm/s

Technical Specs Peak Force

680 N

Technical Specs Peak Force With Anti Backlash Nut

450 N

Technical Specs Permissible Peak Current

14.8 A

Technical Specs Permissible Peak Current With Anti Backlash Nut

9.8 A

Technical Specs Product Availability

Standard Product

Dunkermotoren 102N Nominal Force Spindle Motor
