Dunkermotoren 109N Spindle Motor
Dunkermotoren 109N Spindle Motor
SKU:SPI-ce985c
High-performance Dunkermotoren 109N Spindle Motor for precision applications. Maintenance-free with integrated feedback. Complies with CE and UL standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren 109N Spindle Motor
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 109N Spindle Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

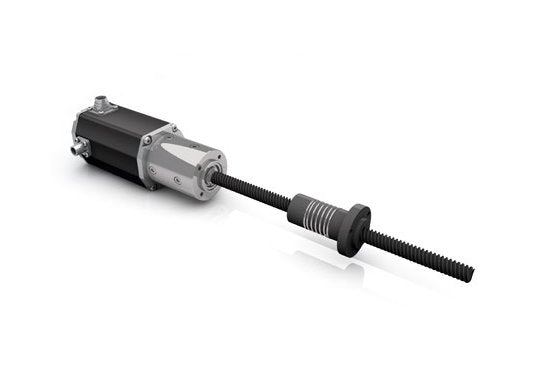

The Dunkermotoren 109N Nominal Force Spindle Motor is a high-performance linear spindle motor ideal for precision applications. With a Nominal Force of 109N, Nominal Speed of 91 mm/s, and Gearbox Reduction of 6.25, it offers efficient and accurate operation. This maintenance-free motor features a coated stainless steel spindle, slide screw, and integrated feedback for precise positioning. It complies with European Conformity (CE) and Underwriters Laboratories (UL) standards, ensuring quality and reliability.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
457 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gearbox Reduction
6.25 i
Technical Specs Gear Type
LSG 13 | Planetary Gearboxes (PLG 52)
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
0.9 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
109 N
Technical Specs Nominal Speed
91 mm/s
Technical Specs Peak Force
537 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
4.0 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
3.3 A
Technical Specs Product Availability
Standard Product
Technical Specs Transmission Efficiency
90 %
