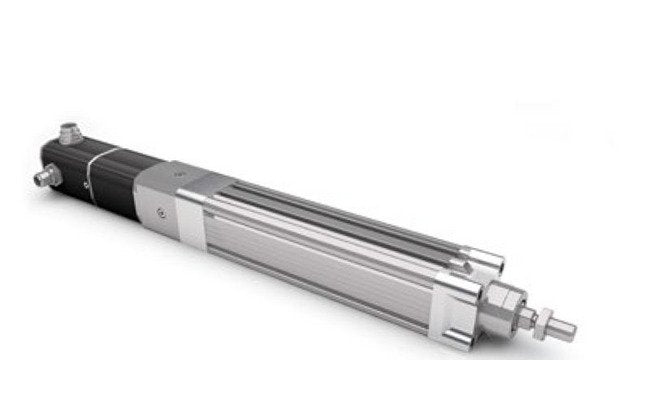

Dunkermotoren 131N Constant Force Electric Cylinder

Name: Dunkermotoren 131N Constant Force Electric Cylinder
Brand: Dunkermotoren
SKU: ELE-09c24a
Price: 799.99 USD
Availability: OutOfStock

SKU:ELE-09c24a

Experience precise positioning and high efficiency with the Dunkermotoren 131N Constant Force Electric Cylinder for institutional and government buyers.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Dunkermotoren 131N Constant Force Electric Cylinder offers strokes up to 400mm with brushless DC servomotors, providing a reliable alternative to pneumatic cylinders. With a constant force of 131N, peak force of 462N, and maximum traverse speed of 500mm/s, this cylinder ensures precise positioning, maintenance-free operation, and high efficiency. It meets industry standards like European Conformity (CE) and Underwriters Laboratories (UL), making it ideal for institutional and government procurement needs.

Product Specifications

Additional Information Additional Information

Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 42 on request

Features Features

IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance

Note Note

Not applicable for motions on mechanical stop.

Technical Specs Brands

Dunkermotoren

Technical Specs Constant Force

131 N

Technical Specs Feedback Integrated

1024 cycles/rev

Technical Specs Industry Standardscertifications

European Conformity (CE) | Underwriters Laboratories (UL)

Technical Specs Maximum Acceleration

6 mm/sÂ²

Technical Specs Maximum Traverse Speed

500 mm/s

Technical Specs Motor Type

BG 45x30

Technical Specs Nominal Current

4.9 A

Technical Specs Nominal Direct Current Dc Voltage

24 V

Technical Specs Peak Current 2 Second S

15 A

Technical Specs Peak Force

462 N

Technical Specs Product Availability

Preferred Series

Technical Specs Protection Class

Ingress Protection (IP54S)

Technical Specs Repeatability

0.01 mm

Technical Specs Spindle Pitch

10 mm

Technical Specs Spindle Version

BN (Ball Screw)

Technical Specs Stroke Length

50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm
