Dunkermotoren 131N Spindle Motor
Dunkermotoren 131N Spindle Motor
SKU:SPI-1b672e
Dunkermotoren 131N Nominal Force Spindle Motor: Reliable, efficient, low-noise solution for precise positioning.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren 131N Spindle Motor
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 131N Spindle Motor
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

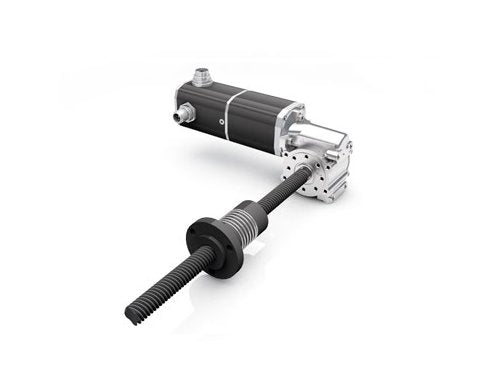

The Dunkermotoren 131N Nominal Force Spindle Motor is a high-performance solution suitable for a wide range of applications. With options for brush and brushless DC motors, this motor offers exceptional reliability and efficiency. Features include precise positioning, low noise operation, and maintenance-free performance. It meets European Conformity (CE) and Underwriters Laboratories (UL) standards, making it ideal for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
High efficiencyEasy configuration of max. 14 positions (PI motor)Serveral BUS interfaces available
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseSelf-locking ratios availableDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
650 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gearbox Reduction
8 i
Technical Specs Gear Type
LSG 13 | Worm Gearboxes (SG 62)
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
1.2 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
131 N
Technical Specs Nominal Speed
65 mm/s
Technical Specs Peak Force
680 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
5.2 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
3.5 A
Technical Specs Product Availability
Standard Product
Technical Specs Transmission Efficiency
60 %
