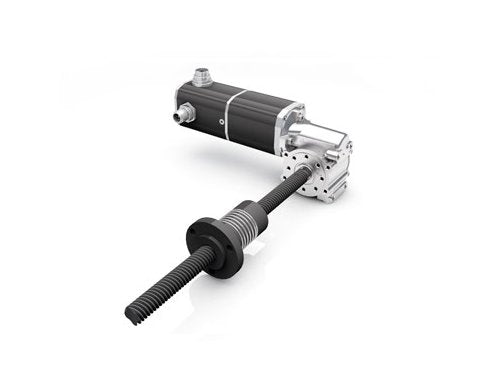

Dunkermotoren 248N Spindle Motor
Dunkermotoren 248N Spindle Motor
SKU:SPI-b7a6de
Achieve precision and efficiency with the Dunkermotoren 248N Spindle Motor, featuring 248N nominal force and maintenance-free operation.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren 248N Spindle Motor
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 248N Spindle Motor
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren 248N Spindle Motor is a high-performance solution designed for precision and efficiency. With a nominal force of 248N and peak force of 680N, this maintenance-free motor offers precise positioning, low noise operation, and vibration resistance. Featuring IO Mode, CANopen compatibility, and integrated feedback, it ensures reliable operation in various applications. Compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards, this motor meets the rigorous requirements of industrial procurement.
Product Specifications
Additional Information Additional Information
High efficiencyEasy configuration of max. 14 positions (PI motor)Serveral BUS interfaces available
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseSelf-locking ratios availableDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
650 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gearbox Reduction
8 i
Technical Specs Gear Type
LSG 13 | Worm Gearboxes (SG 62)
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
2.2 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
248 N
Technical Specs Nominal Speed
75 mm/s
Technical Specs Peak Force
680 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
5.4 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
3.7 A
Technical Specs Product Availability
Standard Product
Technical Specs Transmission Efficiency
60 %
