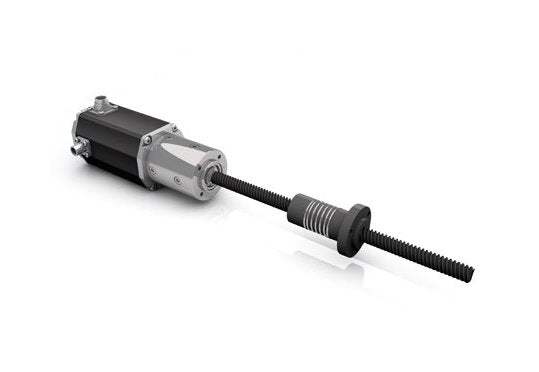

Dunkermotoren 290N Spindle Motor with Anti-Backlash Nut

Name: Dunkermotoren 290N Spindle Motor with Anti-Backlash Nut
Brand: Dunkermotoren
SKU: SPI-c3a088
Price: 899.99 USD
Availability: OutOfStock

SKU:SPI-c3a088

High-efficiency 290N Spindle Motor with Anti-Backlash Nut for precise industrial positioning.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Dunkermotoren 290 Newton Nominal Force Spindle Motor is a high-efficiency linear spindle gearbox motor designed for precise positioning in industrial applications. With the option of brush and brushless DC motors, this maintenance-free motor offers a Nominal Force of 290N and a Nominal Speed of 97 mm/s. It features an anti-backlash nut for enhanced performance, integrated feedback for accurate control, and various BUS interfaces for flexibility. This motor complies with European Conformity (CE) and offers vibration resistance, making it ideal for demanding environments.

Product Specifications

Additional Information Additional Information

High efficiencyEasy configuration of max. 14 positions (PI motor)Serveral BUS interfaces available

Features Features

IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance

Technical Specs Brands

Dunkermotoren

Technical Specs Continous Peak Force

457 N

Technical Specs Feedback Integrated

1024 cycles/rev | 2000 cycles/rev

Technical Specs Gearbox Reduction

6.25 i

Technical Specs Gear Type

LSG 13 | Planetary Gearboxes (PLG 52)

Technical Specs Industry Standardscertifications

European Conformity (CE) | Underwriters Laboratories (UL)

Technical Specs Maximum Stroke

150 mm

Technical Specs Maximum Stroke With Anti Backlash Nut

134 mm

Technical Specs Nominal Current

2.2 A

Technical Specs Nominal Direct Current Dc Voltage

24 V

Technical Specs Nominal Force

290 N

Technical Specs Nominal Speed

97 mm/s

Technical Specs Peak Force

680 N

Technical Specs Peak Force With Anti Backlash Nut

450 N

Technical Specs Permissible Peak Current

4.9 A

Technical Specs Permissible Peak Current With Anti Backlash Nut

3.3 A

Technical Specs Product Availability

Standard Product

Technical Specs Transmission Efficiency

90 %
