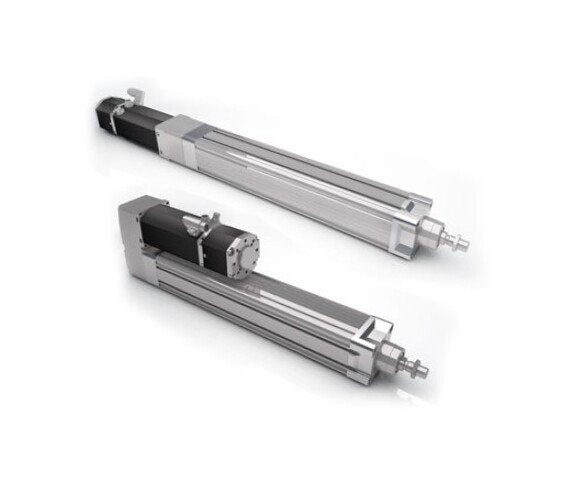

Dunkermotoren 292N Constant Force Electric Cylinder
Dunkermotoren 292N Constant Force Electric Cylinder
SKU:ELE-9c78ad
Experience precision and reliability with Dunkermotoren's 292N Electric Cylinder for high-performance automation.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Dunkermotoren 292N Constant Force Electric Cylinder
$1,499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 292N Constant Force Electric Cylinder
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren 292N Constant Force Electric Cylinder is a precision-engineered solution designed for high-performance automation tasks. With a constant force of 292N and maximum traverse speed of 1060 mm/s, this electric cylinder ensures accurate and efficient linear motion control. Its spindle version utilizes a ball screw with a pitch of 20mm for smooth and reliable operation. This cylinder is compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards, making it a trusted choice for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 63 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
292 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Acceleration
6 mm/s²
Technical Specs Maximum Traverse Speed
1060 mm/s
Technical Specs Motor Type
BG 75x75
Technical Specs Nominal Current
12.7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
50 A
Technical Specs Peak Force
942 N
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.01 mm
Technical Specs Spindle Pitch
20 mm
Technical Specs Spindle Version
BN (Ball Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 800 mm
