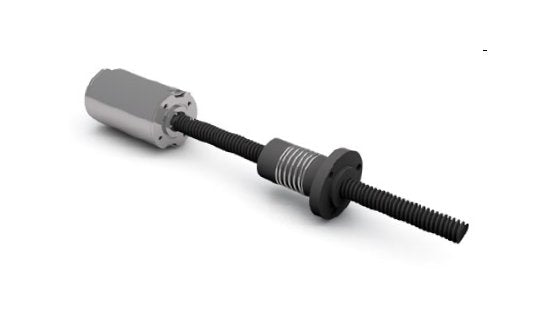

The Dunkermotoren 324N Nominal Force Spindle Motor is a high-performance linear spindle motor designed for precision applications. With a nominal force of 324 N and a maximum stroke of 150 mm, this motor offers exceptional efficiency and precise positioning. Equipped with feedback integration and maintenance-free operation, it ensures reliable performance. Compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards, this motor meets quality and safety requirements for institutional and government procurement.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
324 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev | 4096 cycles/rev
Technical Specs Gear Type
LSM 13
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
6.02 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
324 N
Technical Specs Nominal Speed
250 mm/s
Technical Specs Peak Force
680 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
16.3 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
10.5 A
Technical Specs Product Availability
Standard Product
