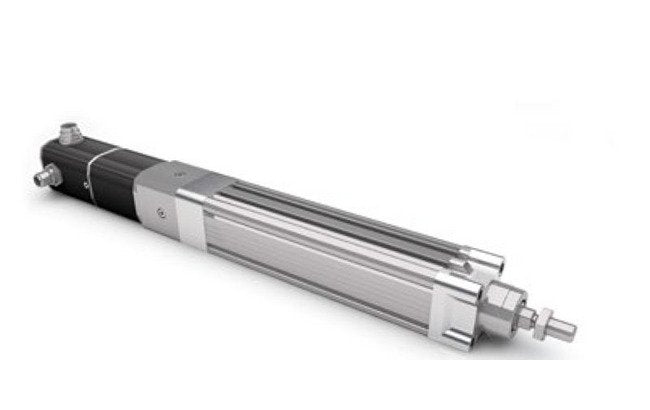

Dunkermotoren 327N Constant Force Electric Cylinder

Name: Dunkermotoren 327N Constant Force Electric Cylinder
Brand: Dunkermotoren
SKU: ELE-6d5f19
Price: 799.99 USD
Availability: OutOfStock

SKU:ELE-6d5f19

Experience precision and power with the Dunkermotoren 327N Electric Cylinder for efficient motion control in industrial applications.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Dunkermotoren 327N Constant Force Electric Cylinder is a cutting-edge solution designed for precision motion control applications. With a nominal DC voltage of 24V and a constant force of 327N, this electric cylinder offers exceptional stroke lengths ranging from 50mm to 400mm. It features a brushless DC servomotor, ball screw spindle, and twist-protected thrust rod for enhanced durability and performance. This cylinder is compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards, ensuring reliability and safety in industrial settings.

Product Specifications

Additional Information Additional Information

Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 42 on request

Features Features

IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance

Note Note

Not applicable for motions on mechanical stop.

Technical Specs Brands

Dunkermotoren

Technical Specs Constant Force

327 N

Technical Specs Feedback Integrated

1024 cycles/rev

Technical Specs Industry Standardscertifications

European Conformity (CE) | Underwriters Laboratories (UL)

Technical Specs Maximum Acceleration

6 mm/sÂ²

Technical Specs Maximum Traverse Speed

150 mm/s

Technical Specs Motor Type

BG 45x30

Technical Specs Nominal Current

4.9 A

Technical Specs Nominal Direct Current Dc Voltage

24 V

Technical Specs Peak Current 2 Second S

15 A

Technical Specs Peak Force

700 N

Technical Specs Product Availability

Preferred Series

Technical Specs Protection Class

Ingress Protection (IP54S)

Technical Specs Repeatability

0.01 mm

Technical Specs Spindle Pitch

3 mm

Technical Specs Spindle Version

BS (Ball Screw)

Technical Specs Stroke Length

50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm
