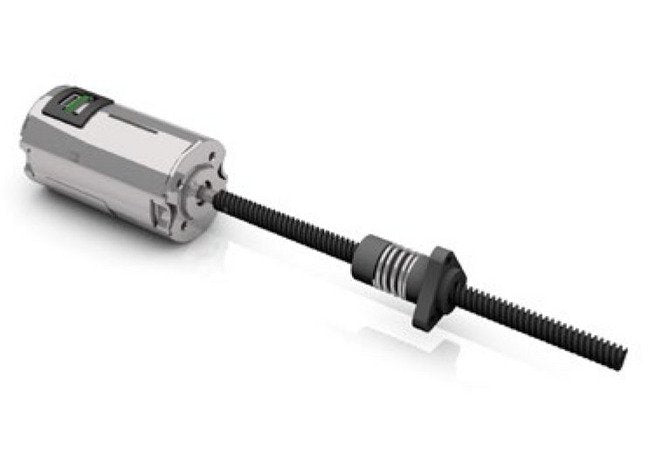

The Dunkermotoren 34N Nominal Force Spindle Motor is a high-performance linear motor suitable for various industrial applications. With options for brush and brushless DC motors, this maintenance-free motor offers precise positioning, IO ModeCANopen compatibility, and high efficiency. Featuring a coated stainless steel spindle, it ensures reliability and durability. This motor is ideal for applications requiring high dynamic performance, great force control, and vibration resistance. Compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
39 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gear Type
LSM 06
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
93 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
90 mm
Technical Specs Nominal Current
0.9 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
34 N
Technical Specs Nominal Speed
300 mm/s
Technical Specs Peak Force
181 N
Technical Specs Peak Force With Anti Backlash Nut
45 N
Technical Specs Permissible Peak Current
4.0 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
1.3 A
Technical Specs Product Availability
Preferred Series
