Dunkermotoren 376N Spindle Motor
Dunkermotoren 376N Spindle Motor
SKU:SPI-6a9c91
High-performance Nominal Force Spindle Motor with precise positioning and maintenance-free operation.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren 376N Spindle Motor
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 376N Spindle Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

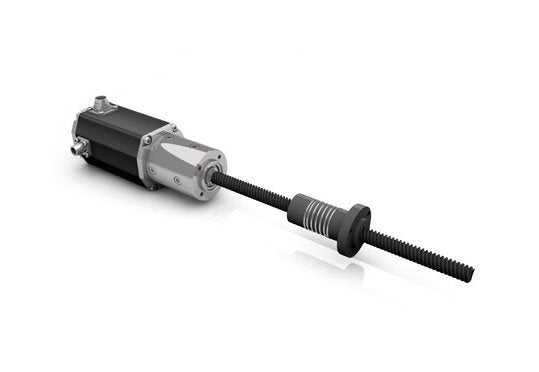

The Dunkermotoren 376N Nominal Force Spindle Motor is a high-performance linear spindle gearbox motor designed for precision applications. With options for brush or brushless DC motors and an anti-backlash nut, this motor ensures smooth operation with minimal maintenance. It features a coated stainless steel spindle, high transmission efficiency, and precise positioning capability with feedback integrated. This motor meets European Conformity (CE) and Underwriters Laboratories (UL) standards, making it ideal for institutional and government procurement needs.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
457 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gearbox Reduction
6.25 i
Technical Specs Gear Type
LSG 13 | Planetary Gearboxes (PLG 52)
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
2.7 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
376 N
Technical Specs Nominal Speed
85 mm/s
Technical Specs Peak Force
680 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
4.9 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
3.3 A
Technical Specs Product Availability
Standard Product
Technical Specs Transmission Efficiency
90 %
