Dunkermotoren 39N Spindle Motor
Dunkermotoren 39N Spindle Motor
SKU:SPI-51147c
High-efficiency Dunkermotoren 39N Spindle Motor for precise positioning and maintenance-free operation. Compliant with CE and UL standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren 39N Spindle Motor
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 39N Spindle Motor
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

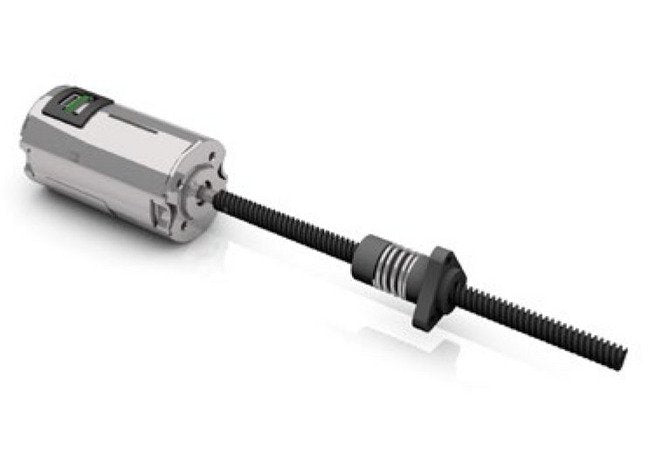

The Dunkermotoren 39N Spindle Motor offers a high-performance solution for precise positioning with its 39N nominal force, brushless DC motor, maintenance-free design, and anti-backlash nut option. It features IO Mode, CANopen compatibility, and digital/analog inputs for versatile applications. Meeting European Conformity (CE) and Underwriters Laboratories (UL) standards, this motor ensures reliability and efficiency in industrial settings.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
39 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gear Type
LSM 06
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
93 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
90 mm
Technical Specs Nominal Current
1.13 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
39 N
Technical Specs Nominal Speed
300 mm/s
Technical Specs Peak Force
200 N
Technical Specs Peak Force With Anti Backlash Nut
45 N
Technical Specs Permissible Peak Current
5.0 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
1.3 A
Technical Specs Product Availability
Preferred Series
