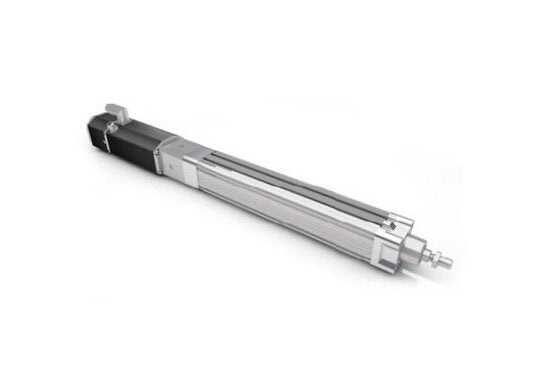

Dunkermotoren 459N Constant Force Electric Cylinder

Dunkermotoren 459N Constant Force Electric Cylinder

SKU:ELE-cf0d47

Enhance industrial automation with Dunkermotoren's 459N Electric Cylinder. Enjoy efficiency and precision with this compliant solution.

Regular price $799.99
Regular price Sale price $799.99
Sale

Initiate Order

Dunkermotoren 459N Constant Force Electric Cylinder

Dunkermotoren 459N Constant Force Electric Cylinder

$799.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren 459N Constant Force Electric Cylinder

Dunkermotoren 459N Constant Force Electric Cylinder

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience precision and efficiency with the Dunkermotoren 459N Constant Force Electric Cylinder. This electric cylinder boasts a constant force of 459N, high dynamic performance, and precise positioning capabilities. With features like IO mode, service interface, and maintenance-free operation, it offers reliability and versatility. Compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards, this cylinder is ideal for industrial applications requiring high-force motion control.

Product Specifications

Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 52 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
459 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Acceleration
6 mm/s²
Technical Specs Maximum Traverse Speed
825 mm/s
Technical Specs Motor Type
BG 75x75
Technical Specs Nominal Current
12.7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
50 A
Technical Specs Peak Force
1484 N
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.01 mm
Technical Specs Spindle Pitch
12.7 mm
Technical Specs Spindle Version
BN (Ball Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm
