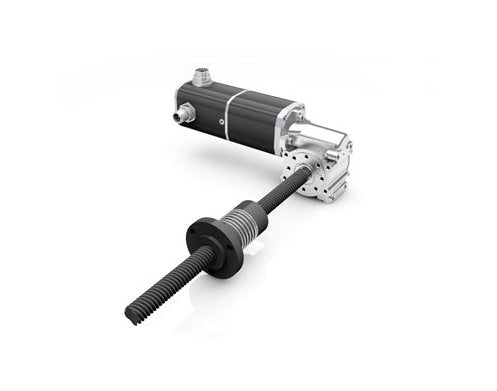

The Dunkermotoren 535N Spindle Motor is a high-performance linear spindle motor designed for precision applications. Featuring both brush and brushless DC motor options, this motor offers maintenance-free operation with a coated stainless steel spindle. With a nominal force of 535N and various advanced features including IO Mode and CANopen compatibility, this motor ensures precise positioning and low noise levels. Ideal for industrial settings requiring reliable and efficient motion control solutions.
Product Specifications
Additional Information Additional Information
High efficiencyEasy configuration of max. 14 positions (PI motor)Serveral BUS interfaces available
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseSelf-locking ratios availableDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
650 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gearbox Reduction
10 i
Technical Specs Gear Type
LSG 13 | Worm Gearboxes (SG 80K)
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
2.7 A
Technical Specs Nominal Current With Anti Backlash Nut
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
535 N
Technical Specs Nominal Force With Anti Backlash Nut
450 N
Technical Specs Nominal Speed
53 mm/s
Technical Specs Peak Force
680 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
3.4 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
2.4 A
Technical Specs Product Availability
Standard Product
Technical Specs Transmission Efficiency
80 %
