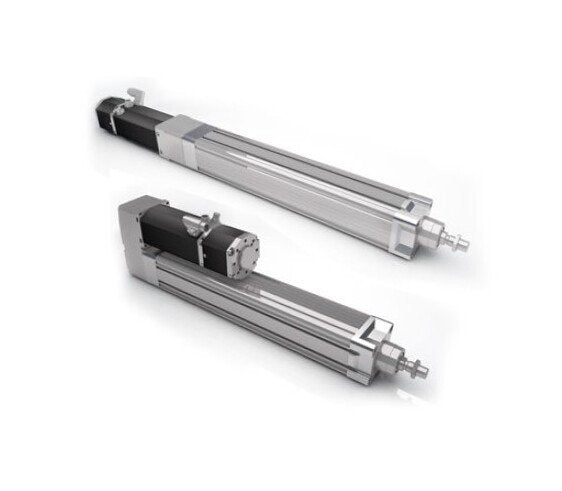

Dunkermotoren 583N Constant Force Electric Cylinder
Dunkermotoren 583N Constant Force Electric Cylinder
SKU:ELE-758250
Experience precise linear motion with the Dunkermotoren 583N Electric Cylinder, offering 583N constant force, high efficiency, and compliance with industry standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Dunkermotoren 583N Constant Force Electric Cylinder
$1,299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 583N Constant Force Electric Cylinder
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren 583N Constant Force Electric Cylinder provides efficient, precise linear motion with a constant force of 583N. Ideal for industrial automation, it features brushless DC servomotors, twist-protected thrust rod, and high-speed traverse capabilities. With built-in feedback integration and adherence to European Conformity and Underwriters Laboratories standards, this electric cylinder offers reliability, high dynamic performance, and ease of maintenance, making it a versatile and durable solution for a range of applications.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 63 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
583 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Acceleration
6 mm/s²
Technical Specs Maximum Traverse Speed
530 mm/s
Technical Specs Motor Type
BG 75x75
Technical Specs Nominal Current
12.7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
50 A
Technical Specs Peak Force
1885 N
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.01 mm
Technical Specs Spindle Pitch
10 mm
Technical Specs Spindle Version
BS (Ball Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 800 mm
