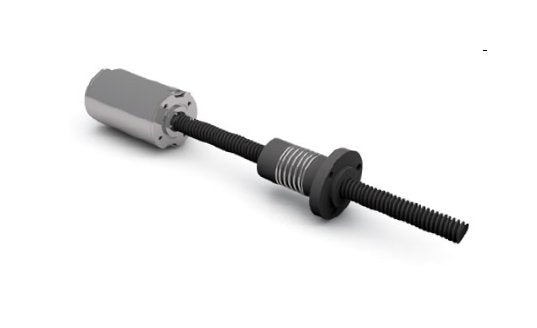

Dunkermotoren 84N Spindle Motor w/ Anti-Backlash Nut
Dunkermotoren 84N Spindle Motor w/ Anti-Backlash Nut
SKU:SPI-8b1fe6
Powerful Dunkermotoren 84N Spindle Motor with high efficiency & precision. CE & UL certified.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren 84N Spindle Motor w/ Anti-Backlash Nut
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren 84N Spindle Motor w/ Anti-Backlash Nut
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren 84N Nominal Force Spindle Motor is a linear powerhouse designed for precision and durability. Featuring brush and brushless DC motors, this maintenance-free motor offers high efficiency with a maximum stroke of 150mm. With industry standards such as European Conformity (CE) and Underwriters Laboratories (UL), this motor ensures reliable performance. It boasts features like IO Mode, Force Mode, and feedback integration, making it ideal for institutional applications requiring precise positioning and exceptional dynamic capabilities.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
324 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev | 4096 cycles/rev
Technical Specs Gear Type
LSM 13
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
2.24 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
84 N
Technical Specs Nominal Speed
300 mm/s
Technical Specs Peak Force
530 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
15 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
12.7 A
Technical Specs Product Availability
Standard Product
